A pocket-size compact body with a large-diameter lens equipped with high-brightness LED. You can switch between polarised and non-polarised with one touch. You can more easily perform magnified observation of the lesion.

Product name

Dermoscope / DZ-S50

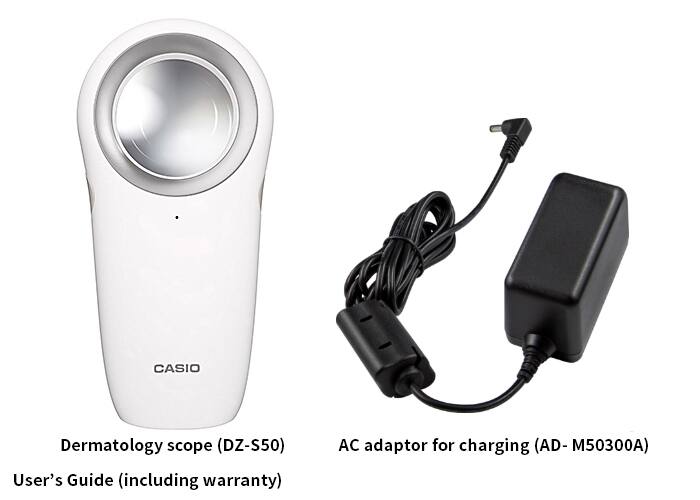

Accessories

AC adapter for charging, User's Guide

MDUFA No.

MD6119549

Device information

Dermoscope DZ-S50
• Regulation Number: 21 CFR § 880.6350
• Abbreviated 510(k)

Included

Features a large diameter 40.5mm (1.6") lens with a wide field of vision and low distortion. Since it is easy to focus, users can observe lesions without putting their face right next to the affected area or making fine position adjustments. The lens magnification is 6x.

The grip fits comfortably in the hand, and power and polarisation switching buttons are located where the user's fingers are positioned when holding it. At around 125 g, the device is lightweight, and thanks to the symmetrical shape, it can be used with both the left and right hand.

Power down by itself / Auto power off

The power supply unit switches off automatically approximately 3 minutes after it is switched on. This prevents the device being left unattended and reduces concerns about suddenly running out of battery power.

The LED light has an illumination intensity of 30,000 lux, allowing users to see lesions clearly in sharp detail and assisting accurate observation of color. It is energy-efficient and provides approximately 120 minutes of continuous use on a single charge. This reduces concern about keeping patients waiting during recharge.

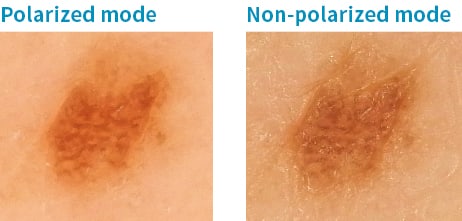

The LED light can be charged from polarised to non-polarised mode with a single switch. Polarised mode works best for observing pigment distribution beneath the skin's surface, while non-polarised mode is good for observing the condition of the skin's surface.

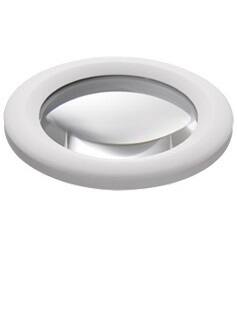

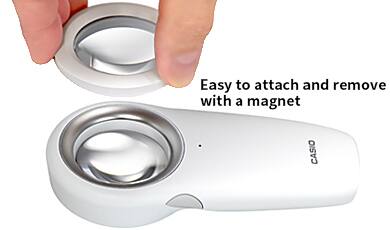

An easy-to-fit conventional lens is available and can increase lens magnification from 6x to 9x. This is useful for observing minute lesions such as scabbles.
