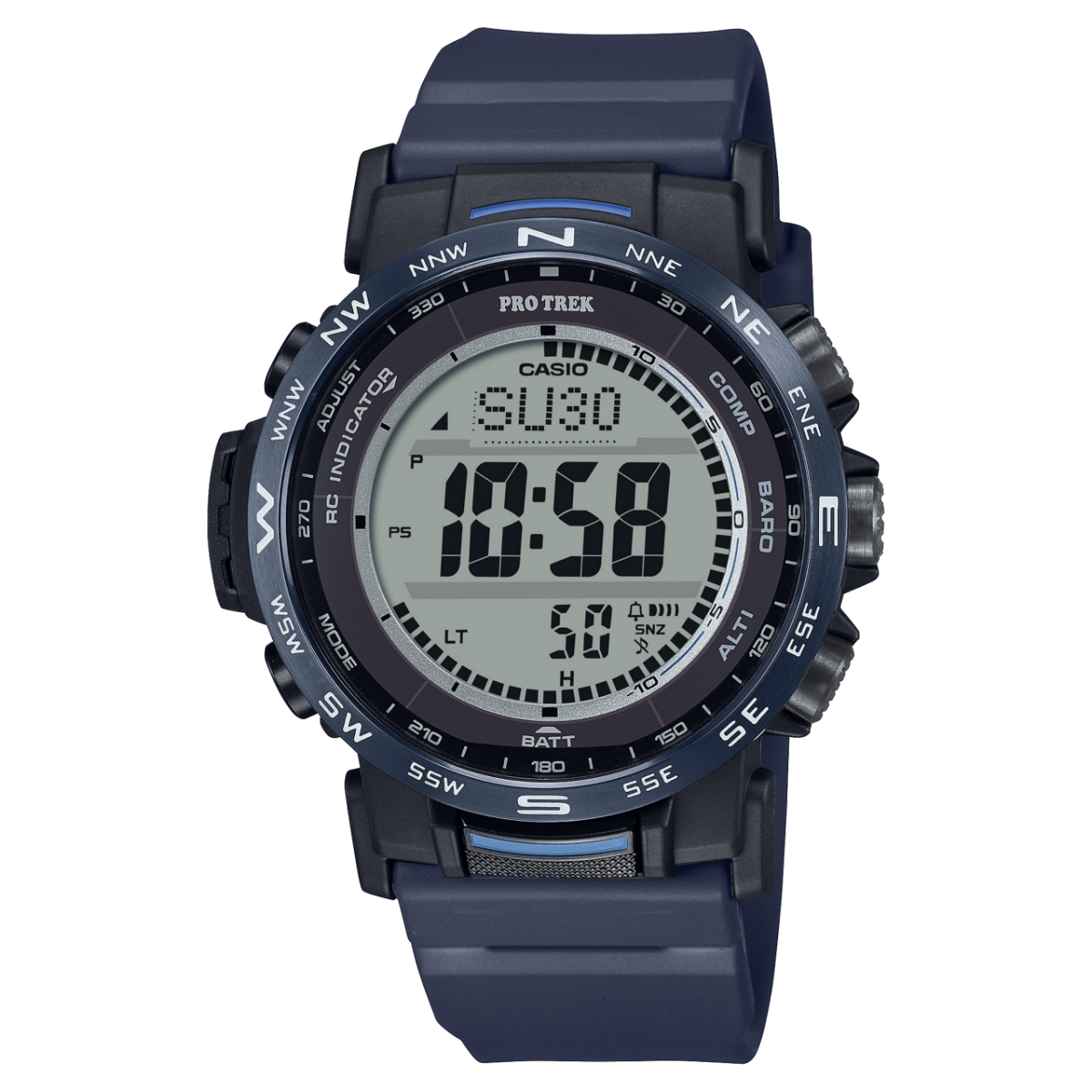

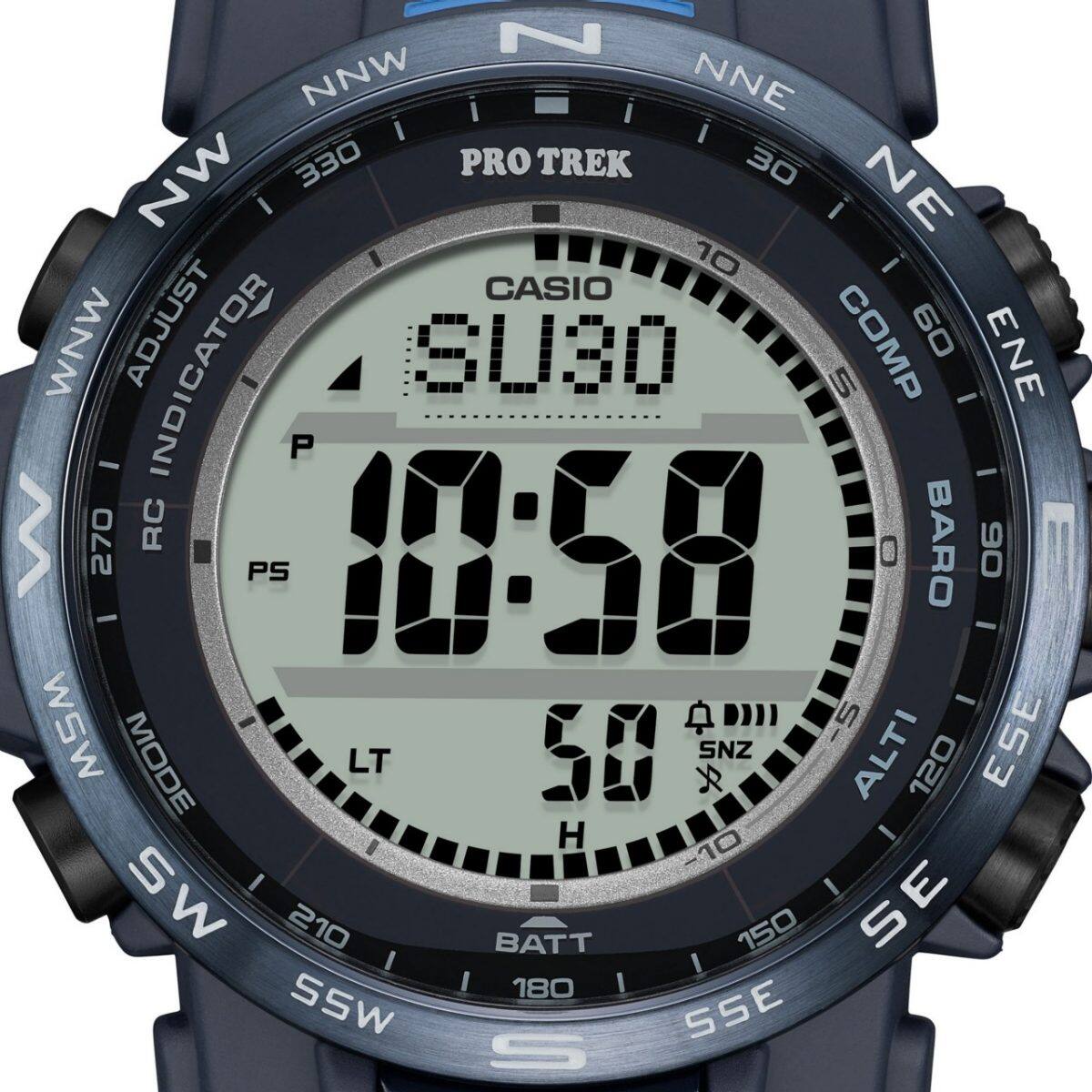

PRW-35 Series

PRW-35Y-2

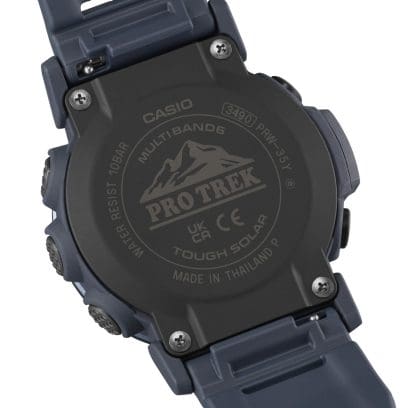

Back engraving

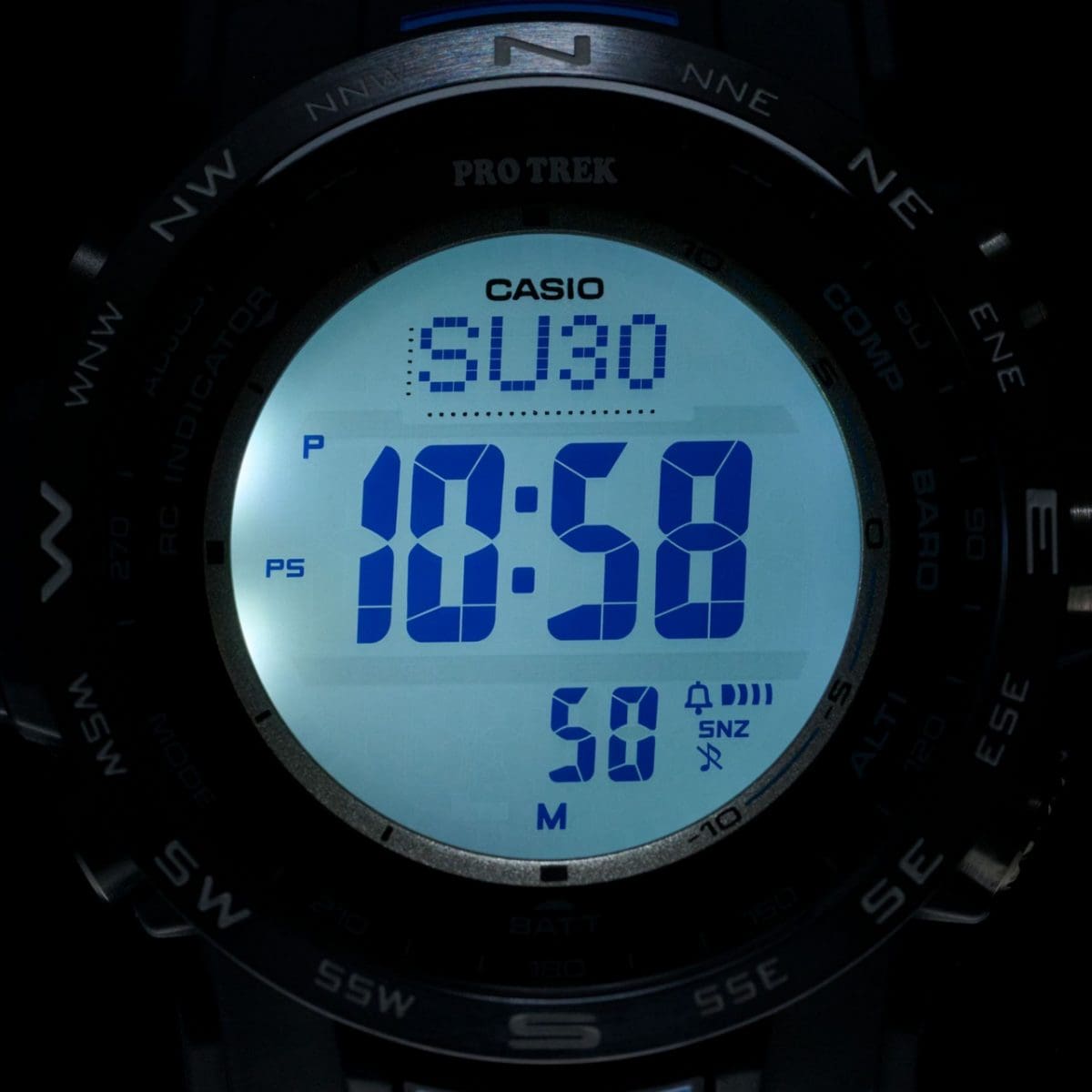

LED light

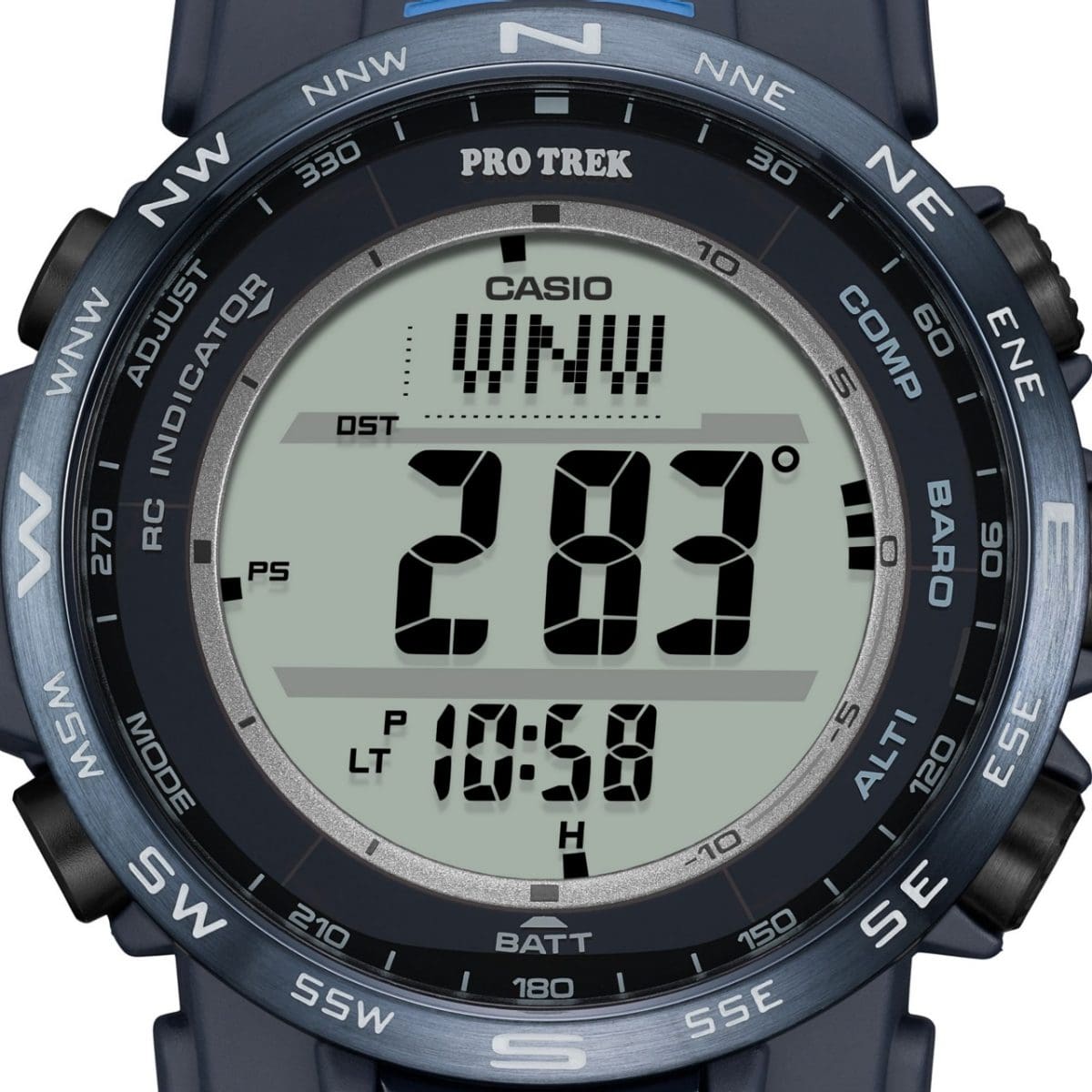

Digital compass display
Altimeter display

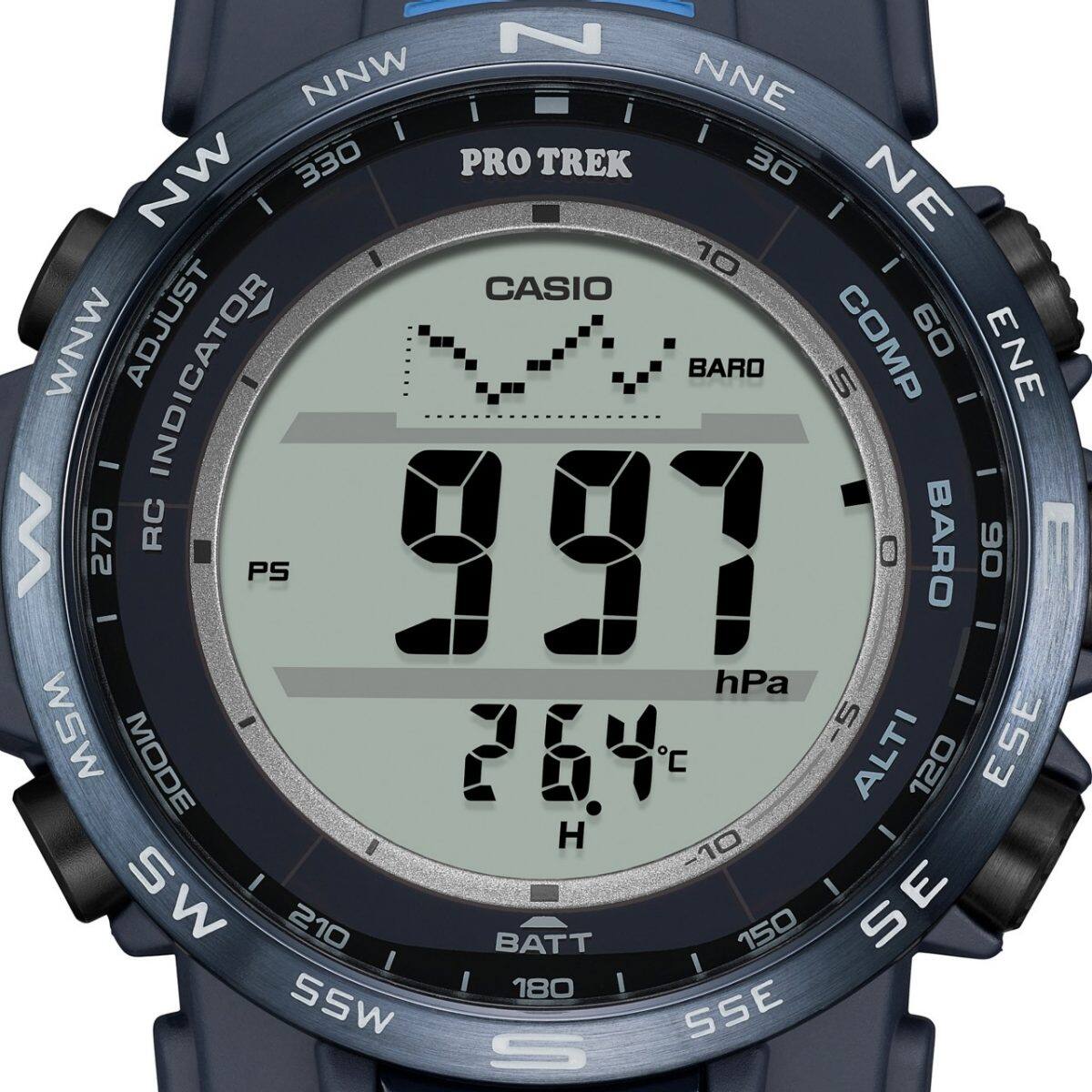

Barometer / Thermometer display

This timepiece really delivers the whole package — convenient, one-push outdoor functionality in a watch that incorporates materials expected to help reduce environmental impact. Satisfy your passion for the great outdoors and love of the environment with the digital PRW-35. The soft urethane band, designed with slits, delivers breathability and comfortable wear. Bio-based resins used in the band and key components in the case and case back keep the weight of the watch down and the comfort to your wrist up on those epic days you spend outdoors. Simply push the large dedicated buttons along the right side of the case to check compass bearing, barometric pressure/altitude, and temperature. The mode name is shown near each button so you know at a glance which digital reading is displayed. The super-twisted nematic (STN) LCD and large, bold digital readout deliver excellent readability wherever you find yourself, even in the harshest terrains. To this array of functions, add Casio performance with Tough Solar charging, Multiband 6 radio control, and water resistance up to 100 meters, and you are ready for action wherever you go.

Back engraving
LED light
Digital compass display

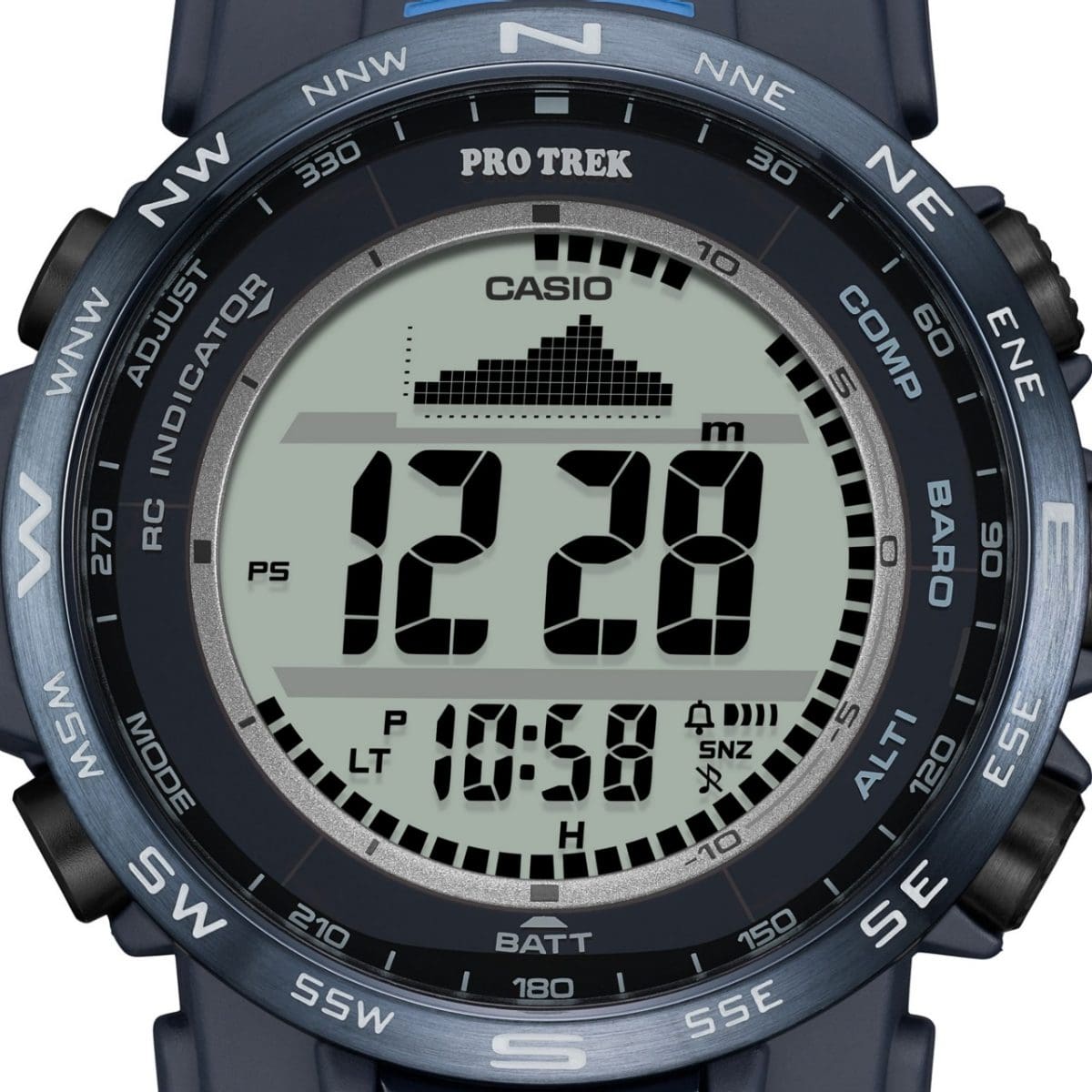

Altimeter display
Barometer / Thermometer display

Major Features

Keeps yourself in time
Stable solar power
10 bar water resistant
Lets you know your direction
Lets you know the barometric pressure and altitude
Lets you know the temperature

Specifications

Case size (L× W× H)

51.2 × 44.6 × 13 mm
Weight

45 g
Case and bezel material

Bio-based resin / Stainless steel
Band

Bio-based resin band
Water resistance

100-meter water resistance
Environmental resistance

Low-temperature resistant (-10℃/14℉)
Time adjustment

Radio-controlled Watch; Multi band 6
Power supply and battery life

Tough Solar (Solar powered)
Sensor feature

Altimeter Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.) Measuring unit: 1 m (5 ft.) Manual memory measurements (up to 30 records, each including altitude, date, time) Auto log data (High/low altitudes, auto cumulative ascent and descent) Trek log data (up to 14 records of high/low altitudes, auto cumulative ascent and descent of particular treks) Others: Relative altitude readings (-3,000 to 3,000 m) Selectable measurement interval: 5 seconds or 2 minutes *1 second for first 3 minutes only *Changeover between meters (m) and feet (ft)

Barometer Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg) Display unit: 1 hPa (0.05 inHg) Atmospheric pressure tendency graph (Past 42 hours of readings) Atmospheric pressure differential graphic Barometric pressure tendency information alarm (beep and arrow indicate significant changes in pressure) *Changeover between hPa and inHg

Digital compass Measures and displays direction as one of 16 points Measuring range: 0 to 359° Measuring unit: 1° 60 seconds continuous measurement Graphic direction pointer Bidirectional calibration Magnetic declination correction Bearing memory

Thermometer Display range: -10 to 60℃ (14 to 140℉) Display unit: 0.1℃ (0.2℉) *Changeover between Celsius (℃) and Fahrenheit (℉)

World time

Home Time/World Time swapping
Sunrise/sunset display

Sunrise, sunset time display Sunrise time and sunset time for specific date, daylight pointers
Stopwatch

1/10-second stopwatch Measuring capacity: 999:59'59.9'' Measuring modes: Elapsed time, split time, 1st-2nd place times
Timer

Countdown timer Measuring unit: 1 second Countdown range: 24 hours Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)
Alarm/hourly time signal

5 daily alarms (with 1 snooze alarm)

Hourly time signal
Light

LED backlight (Super Illuminator) Full auto LED light, selectable illumination duration (1.5 seconds or 3 seconds), afterglow
Light color

LED:White
Calendar

Full auto-calendar (to year 2099)
Mute feature

Button operation tone on/off
Energy saving feature

Power Saving (display goes blank to save power when the watch is left in the dark)
Battery display/alert

Battery level indicator
Run time

Approx. battery operating time: 6 months on rechargeable battery (operation period with normal use without exposure to light after charge) 22 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Accuracy

Accuracy: ±15 seconds per month (with no signal calibration)
Other features

12/24-hour format

Regular timekeeping: Hour, minute, second, pm, year, month, date, day
Time adjustment details

Time Calibration Signals Station name: DCF77 (Mainflingen, Germany) Frequency: 77.5 kHz Station name: MSF (Anthorn, England) Frequency: 60.0 kHz Station name: WWVB (Fort Collins, United States) Frequency: 60.0 kHz Station name: JJY (Fukushima, Fukuoka/Saga, Japan) Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga) Station name: BPC (Shangqiu City, Henan Province, China) Frequency: 68.5 kHz

Time calibration signal reception Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal Manual receive The latest signal reception results

Operation Guide

Compact, lightweight digital watches made with bio-based resins

Featuring a digital display that’s easy to read and use, even on a more compactly sized watch. Key resin components are made with eco-friendly bio-based resins. The lighter weight of these watches also supports your active and eco-conscious outdoor life. Ideal for camping, mountain-climbing, and everything in between.

FEATURE1

Lightweight and compact

The smaller case does not impede wrist movement and won’t get caught on your shirt cuff. The compact size also sits comfortably on slimmer wrists, too. The use of bio-based resins for the case-back also keeps the weight down, so you can wear this watch in comfort during long days spent enjoying the great outdoors.

FEATURE2

Expected to reduce environmental impact bio-based resins

The resin components of the case, case back, and band are made with bio-based resins produced using renewable organic resources such as castor oil plants and corn, helping to reduce the ecological footprint of these watches. Eco-consciousness rendered in physical form, a fitting material for a real outdoor tool.

FEATURE3

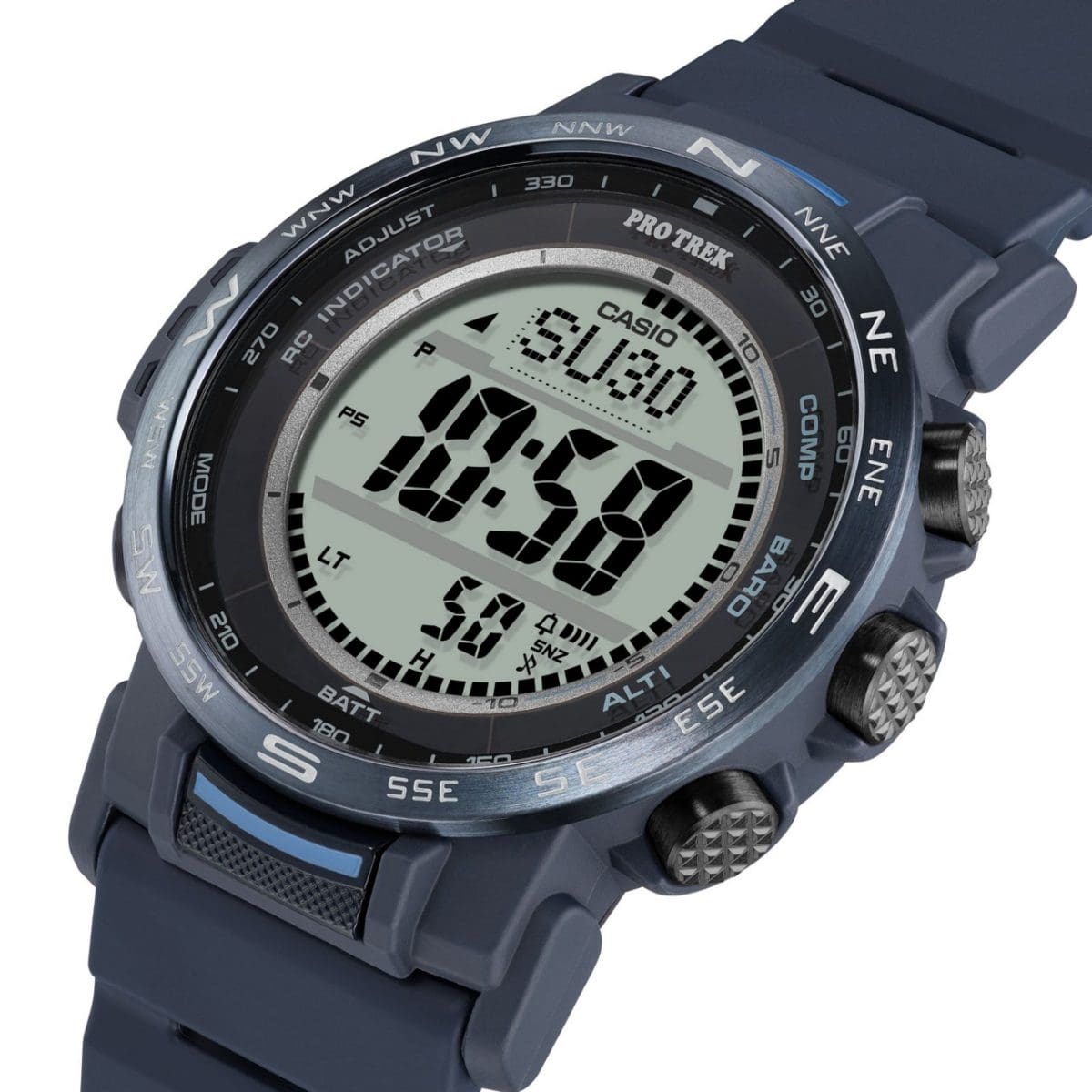

Large dedicated function buttons for one-push measurements

Get measurements of compass bearing, barometric pressure/temperature, and altitude with a single push of one of the three large dedicated function buttons. The non-slip knurled finish makes for more intuitive and accurate button operation, even when wearing gloves.

FEATURE4

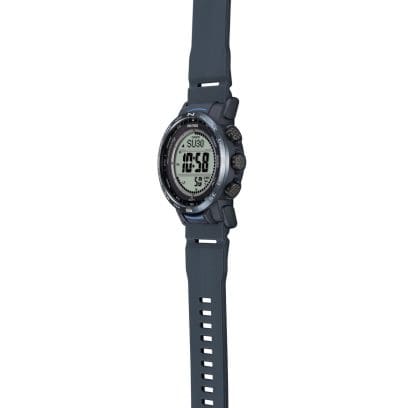

Soft urethane band for a comfortable fit

The band is made with soft urethane for both strength and flexibility. Slits help shed perspiration for more comfortable wear, and a simple lever makes it easy to attach and remove — handy for cleaning and other maintenance. The PRW-35Y-3 features a rich blue-green band that recalls the forest.

PROMOTION MOVIE

DETAIL1

STN LCD for excellent readability

The display is a highly readable super-twisted nematic (STN) LCD, boasting a large, bold digital readout that makes checking the time and other measurements intuitive.
