PRW-6900 Series

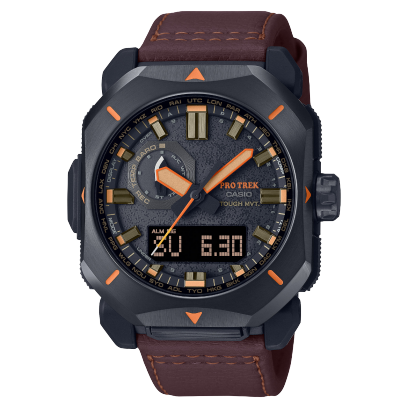

PRW-6900YL-5

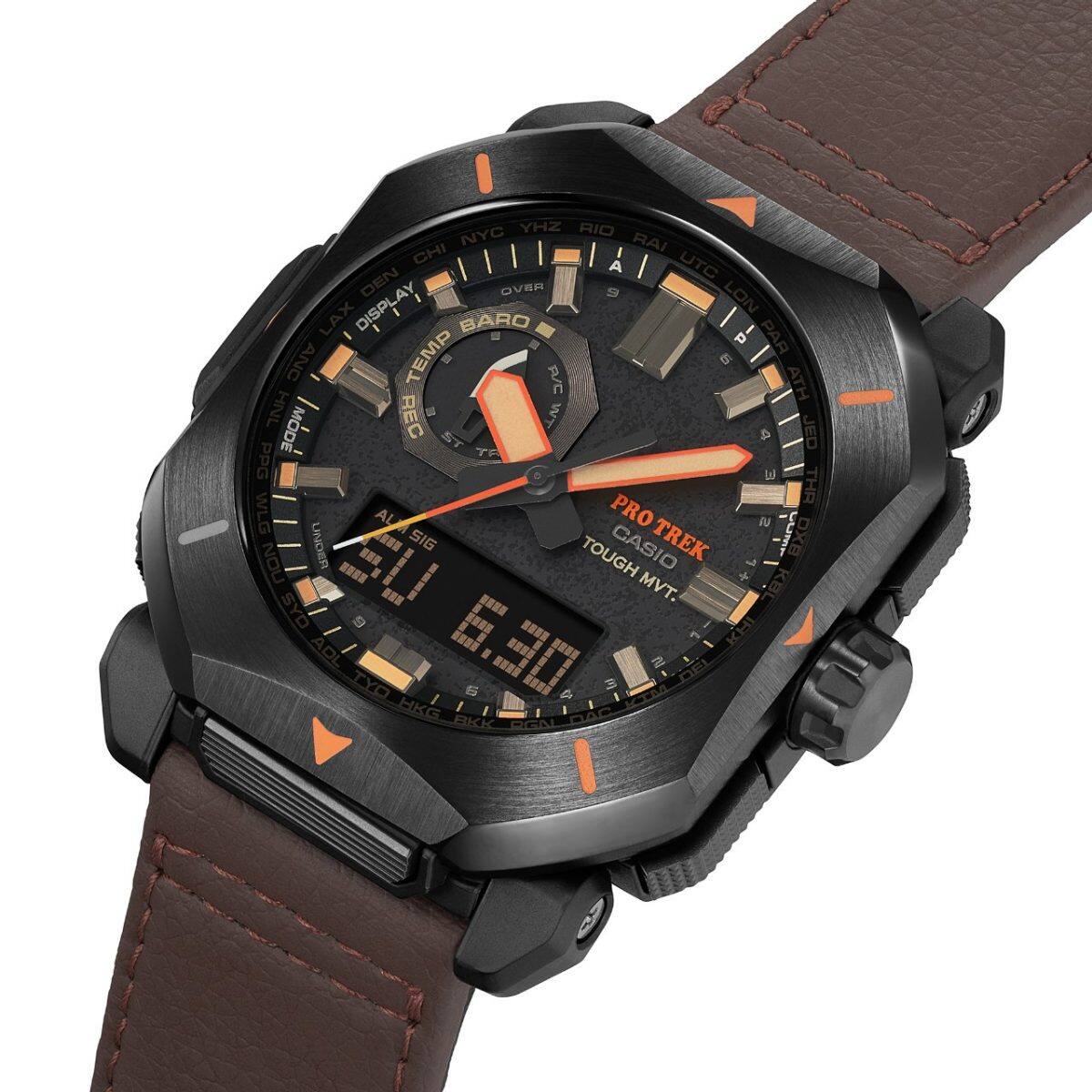

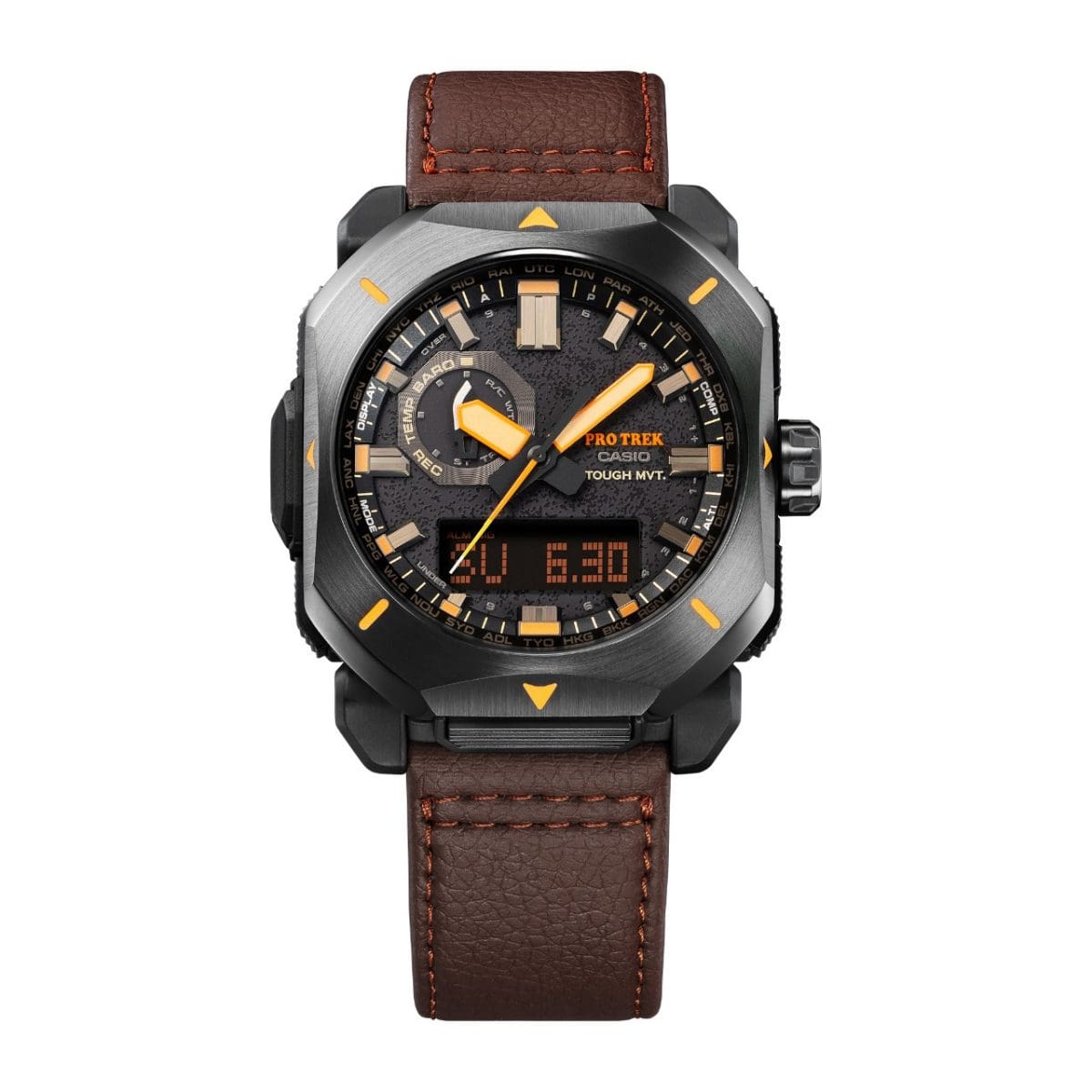

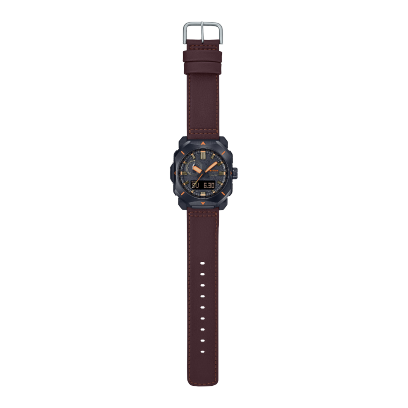

Practicality and design sensibility in a flame-retardant leather band

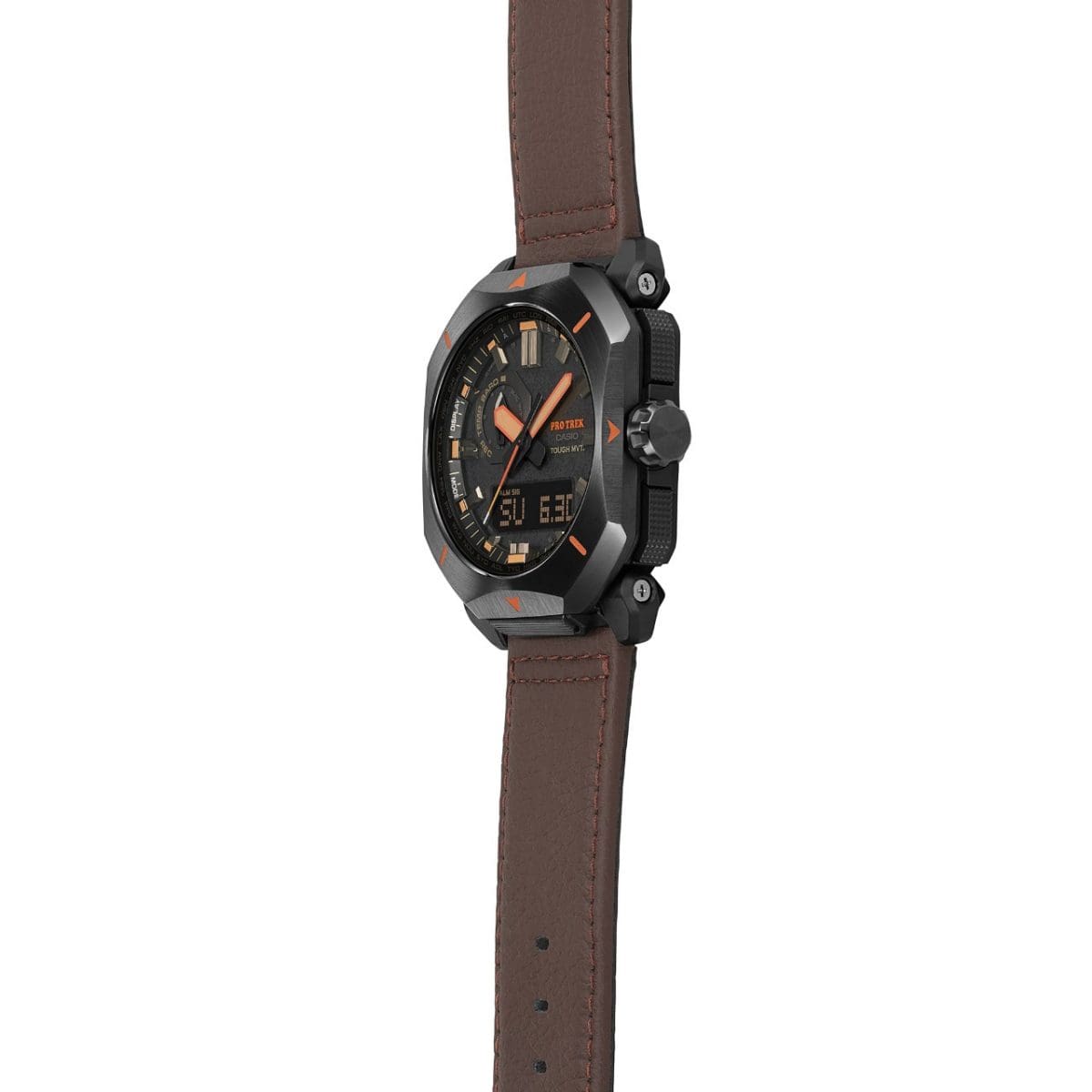

Solid functional beauty: Forged polygonal bezel structure
Back engraving

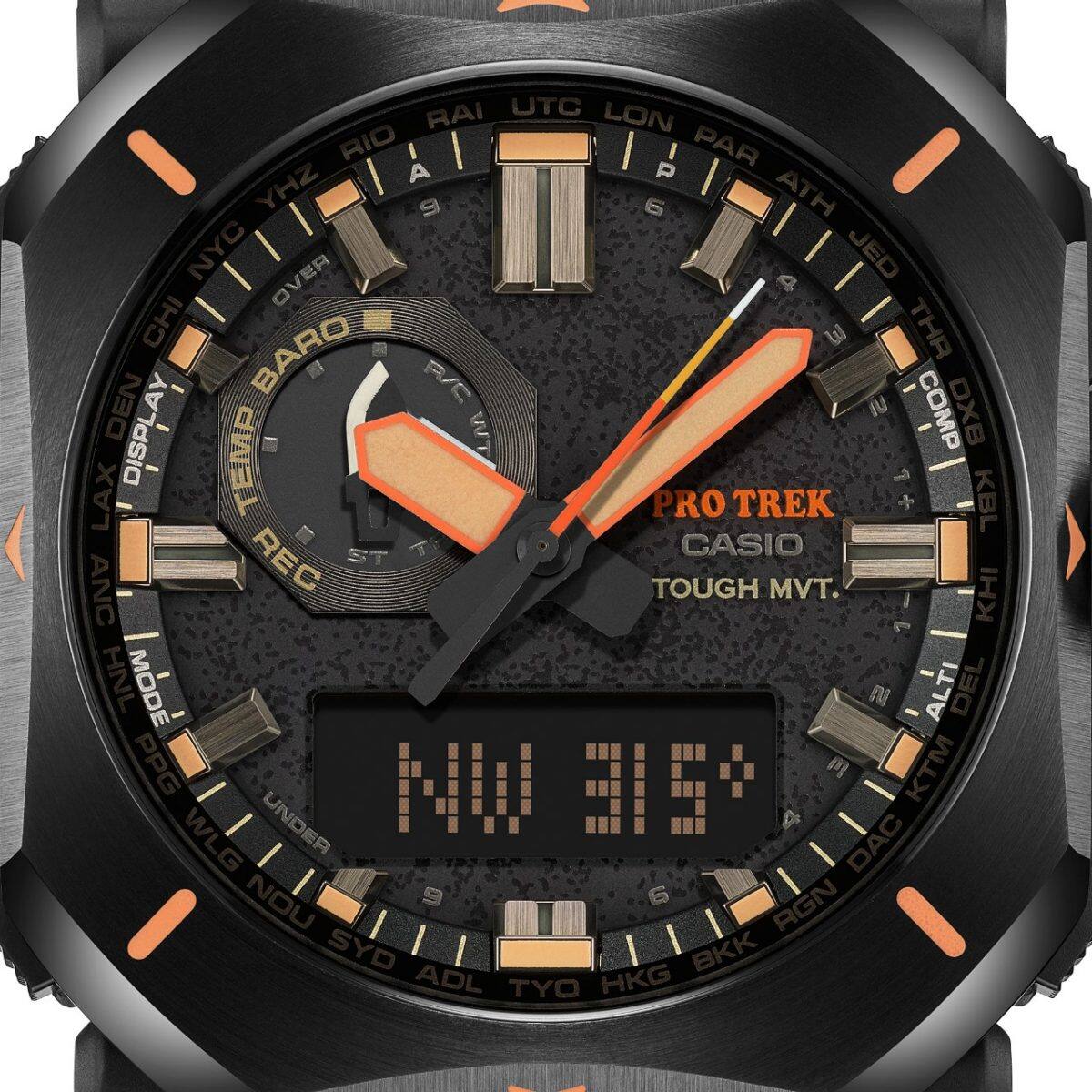

Digital compass display

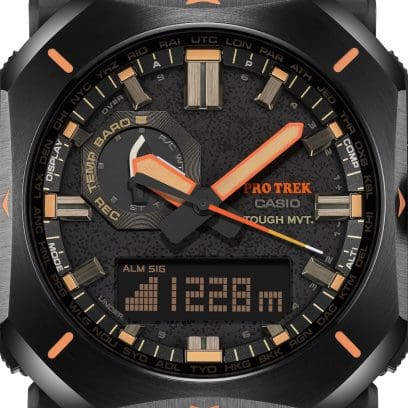

Altimeter display

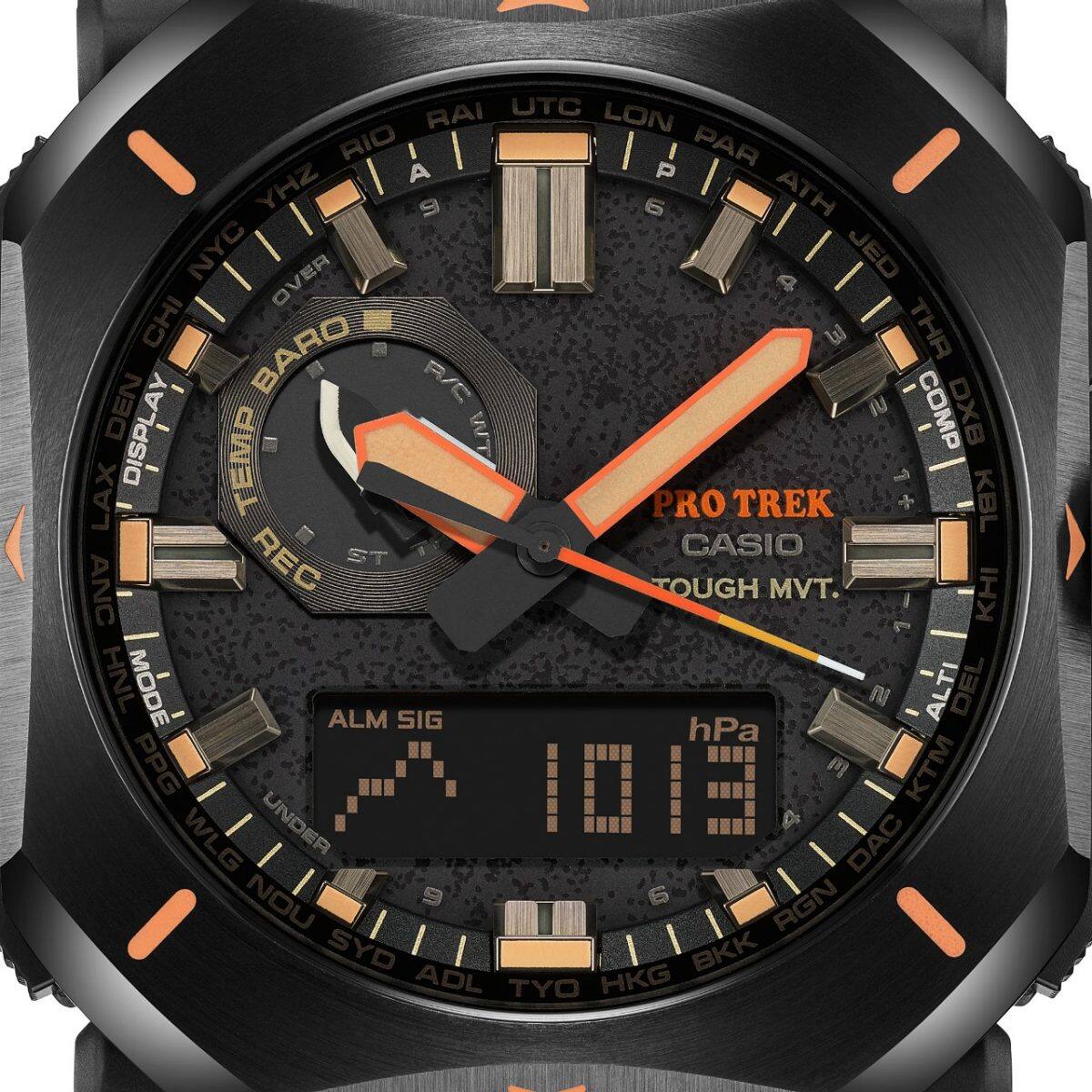

Barometer display

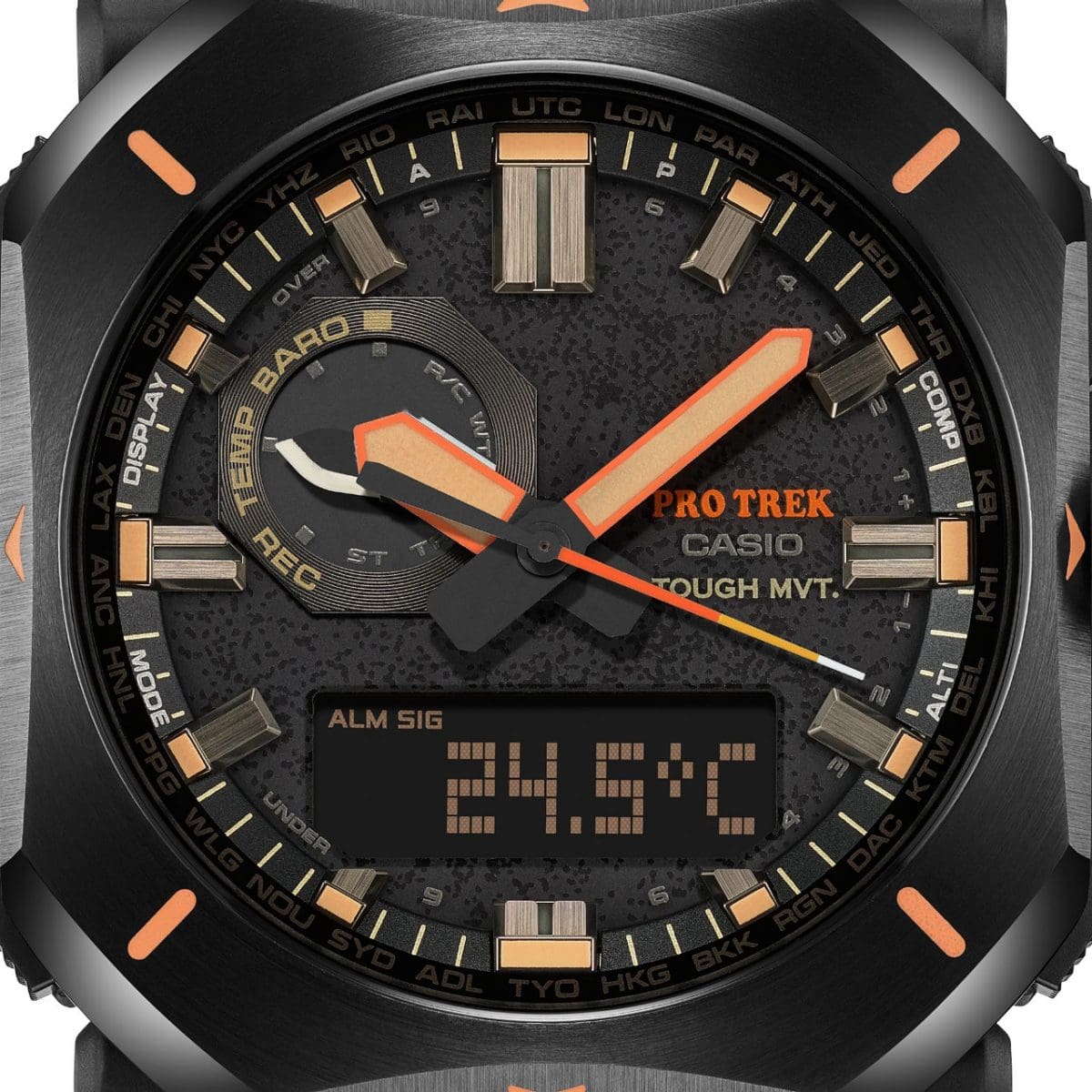

Thermometer display

Get out into the great outdoors with new PRO TREK timepieces featuring solar-powered radio-controlled precision. The PRO TREK line of authentic outdoor gear for nature lovers now includes the PRW-6900YL timepieces of solid structural and functional beauty inspired by survival tools. In a rough and rugged outdoor style, these timepieces feature a metal bezel with sharply tapered edges reminiscent of a wood axe. At the 10 o’clock position, the inset dial indicator hand recalls the blade of a camping knife, and the second hand features the orange gradation of campfire flames. The base of the dial has a textured cast iron-like surface evoking a Dutch oven, bringing together a design that epitomizes all there is to love about bushcraft. The case and resin case back are made with bio-based resin in a watch that incorporates materials expected to help reduce environmental impact. The flame-retardant leather band of the PRW-6900YL holds up even when hit by flying sparks.

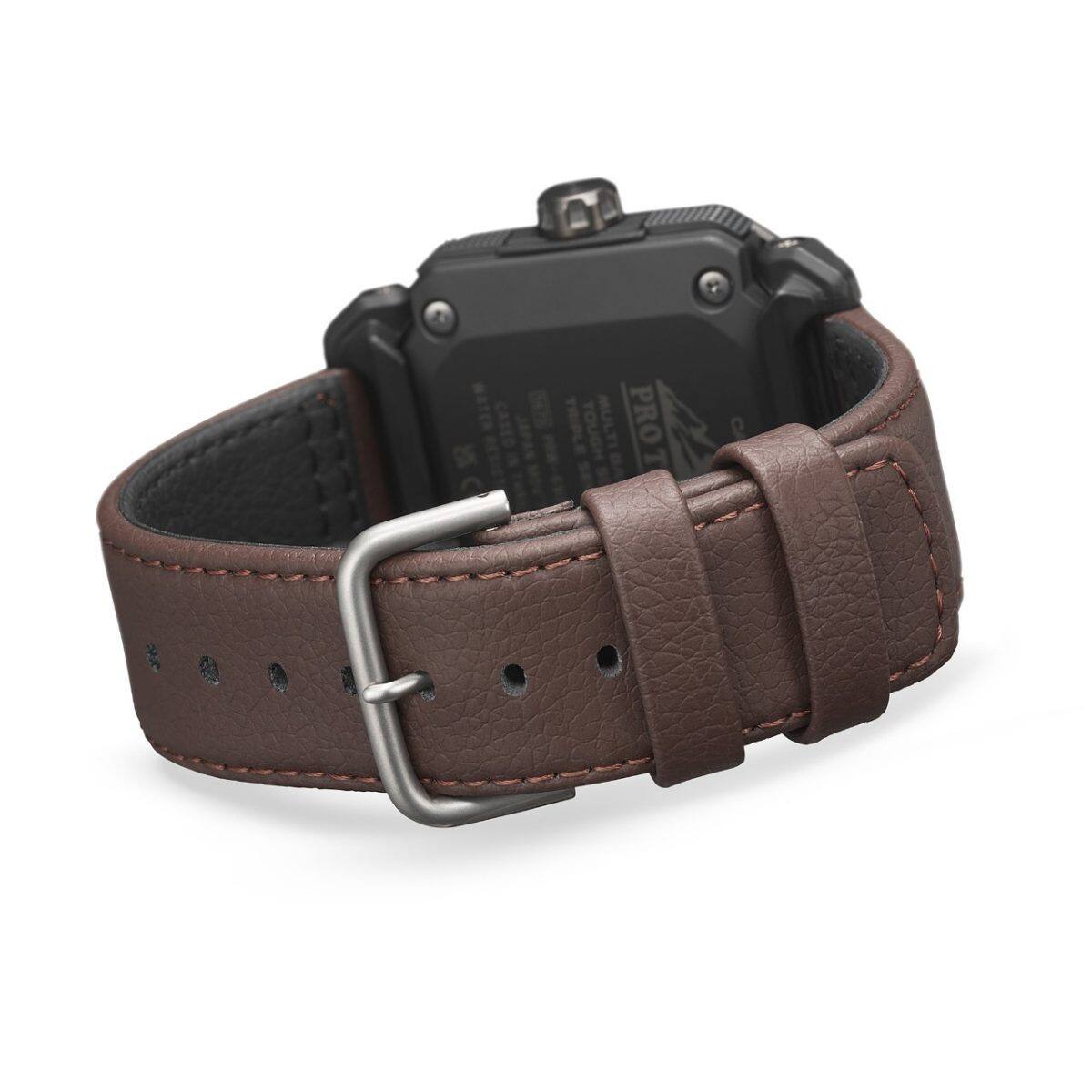

Practicality and design sensibility in a flame-retardant leather band
Solid functional beauty: Forged polygonal bezel structure

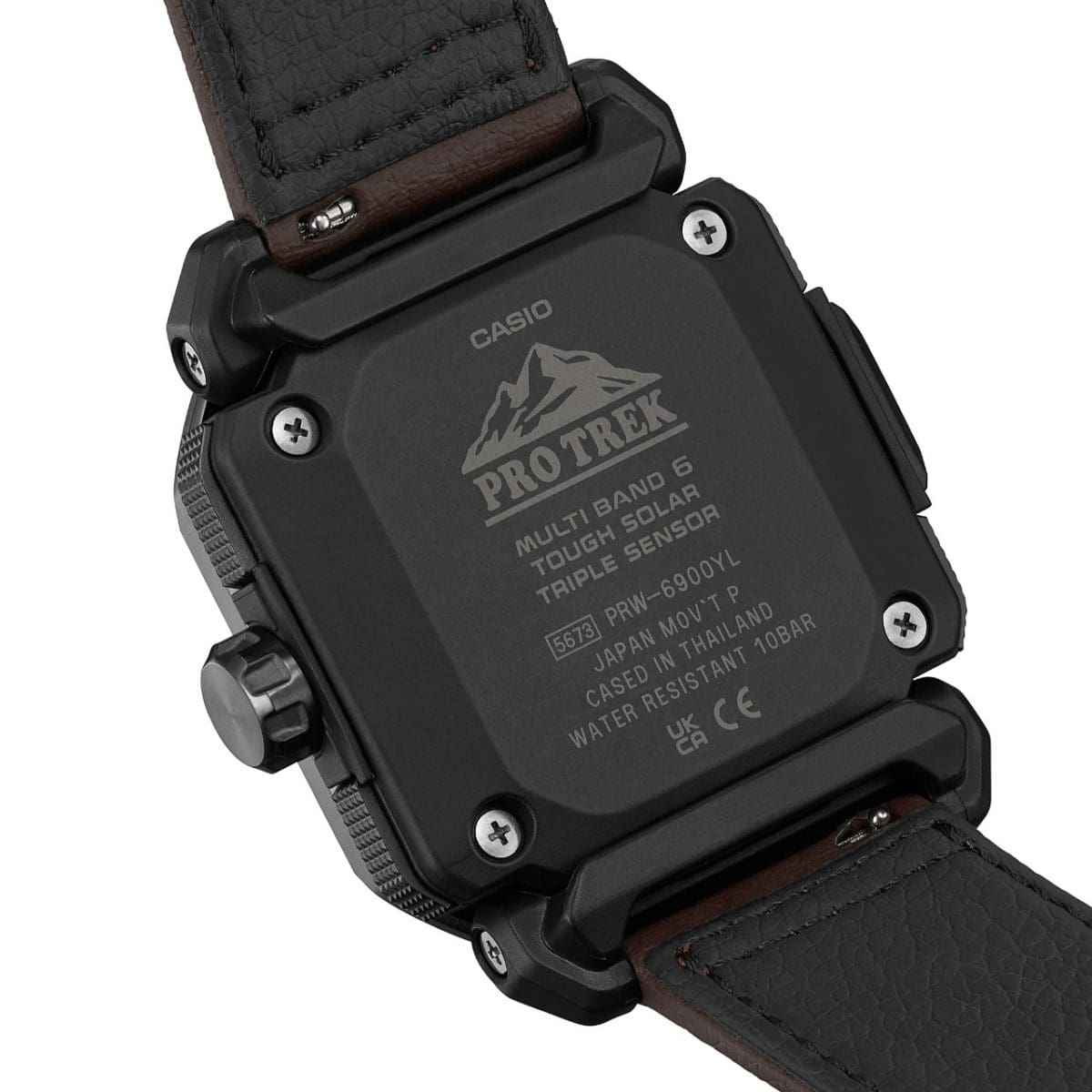

Back engraving
Digital compass display
Altimeter display
Barometer display
Thermometer display

Major Features

Keeps yourself in time
Stable solar power
10 bar water resistant
Lets you know your direction
Lets you know the barometric pressure and altitude
Lets you know the temperature

Specifications

Case size (L× W× H)

49.6 × 44.8 × 14.7 mm
Weight

63 g
Case and bezel material

Resin / Stainless steel
Band

Leather Band
Water resistance

100-meter water resistance
Environmental resistance

Low-temperature resistant (-10℃/14℉)
Time adjustment

Radio-controlled Watch; Multi band 6
Power supply and battery life

Tough Solar (Solar powered)
Sensor feature

Digital compass Measures and displays direction as one of 16 points Measuring range: 0 to 359° Measuring unit: 1° 60 seconds continuous measurement Hand indication of north Bidirectional calibration Magnetic declination correction

Altimeter Measuring range: -700 to 10,000 m ( -2,300 to 32,800 ft.) Measuring unit: 1 m (5 ft.) Hand indication of altitude differential Manual memory measurements (up to 30 records, each including altitude, date, time) Auto log data (High/low altitudes, cumulative ascent and descent) Others: Relative altitude readings (±100m /±1000m), Selectable measurement interval: 5 seconds or 2 minutes *1 second for first 3 minutes only *Changeover between meters (m) and feet (ft)

Barometer Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg) Display unit: 1 hPa (0.05 inHg) Hand indication of pressure differential Atmospheric pressure tendency graph Barometric pressure tendency information alarm (beep and arrow indicates significant changes in pressure) *Changeover between hPa and inHg

Thermometer Display range: -10 to 60℃ (14 to 140℉) Display unit: 0.1℃ (0.2℉) *Changeover between Celsius (℃) and Fahrenheit (℉)

Glass

Mineral Glass
Crown

Screw Lock Crown
Surface treatment

Black ion plated bezel
Compatible band size

145 to 215 mm
Other

Neobrite

World time

World time 29 time zones (29 cities + coordinated universal time), One-touch UTC Time Zone Access, daylight saving on/off, Home city/World time city swapping
Stopwatch

1/100-second stopwatch Measuring capacity: 23:59'59.99'' Measuring modes: Elapsed time, split time, 1st-2nd place times
Timer

Countdown timer Measuring unit: 1 second Countdown range: 60 minutes Countdown start time setting range: 1 minute to 60 minutes (1-minute increments)
Alarm/hourly time signal

5 daily alarms

Hourly time signal
Light

Double LED light LED light for the face (Full auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow) LED backlight for the digital display (Full auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
Light color

LED:White
Calendar

Full auto-calendar (to year 2099)
Mute feature

Button operation tone on/off
Hand home position correction feature

The auto hand home position correction
Energy saving feature

Power Saving (display goes blank and hands stop to save power when the watch is left in the dark)
Battery display/alert

Battery level indicator
Run time

Approx. battery operating time: 6 months on rechargeable battery (operation period with normal use without exposure to light after charge) 25 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Accuracy

Accuracy: ±15 seconds per month (with no signal calibration)
Other features

12/24-hour format

Hand shift feature (manual or auto (during altitude, barometric pressure, and temperature measurement))

Regular timekeeping: Analog: 3 hands (hour, minute (hand moves every 10 seconds), second) Digital: Hour, minute, second, am/pm, month, date, day
Time adjustment details

Time Calibration Signals Station name: DCF77 (Mainflingen, Germany) Frequency: 77.5 kHz Station name: MSF (Anthorn, England) Frequency: 60.0 kHz Station name: WWVB (Fort Collins, United States) Frequency: 60.0 kHz Station name: JJY (Fukushima, Fukuoka/Saga, Japan) Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga) Station name: BPC (Shangqiu City, Henan Province, China) Frequency: 68.5 kHz

Time calibration signal reception Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal Manual receive The latest signal reception results

Operation Guide

Rough and rugged outdoor style in a tough and sturdy design

Introducing new PRO TREK watches built for the rough and rugged outdoors. The sharp lines and tapered edges of the metal bezel evoke the sharp edge of a sturdy wood axe. The carefully selected materials, color, and finishes are all inspired by bushcraft survival gear.

DEVELOPER INTERVIEW

FEATURE 1

Solid functional beauty: Forged polygonal bezel structure

Stainless steel is used to craft the bezel with a forged form featuring sharply tapered edges. Each surface is individually polished in a hairline or mirror finish and then ion plated to a beautiful gleam. The case design combines powerful structural beauty and refined functional beauty inspired by bushcraft and other extreme outdoor lifestyles.

FEATURE 2

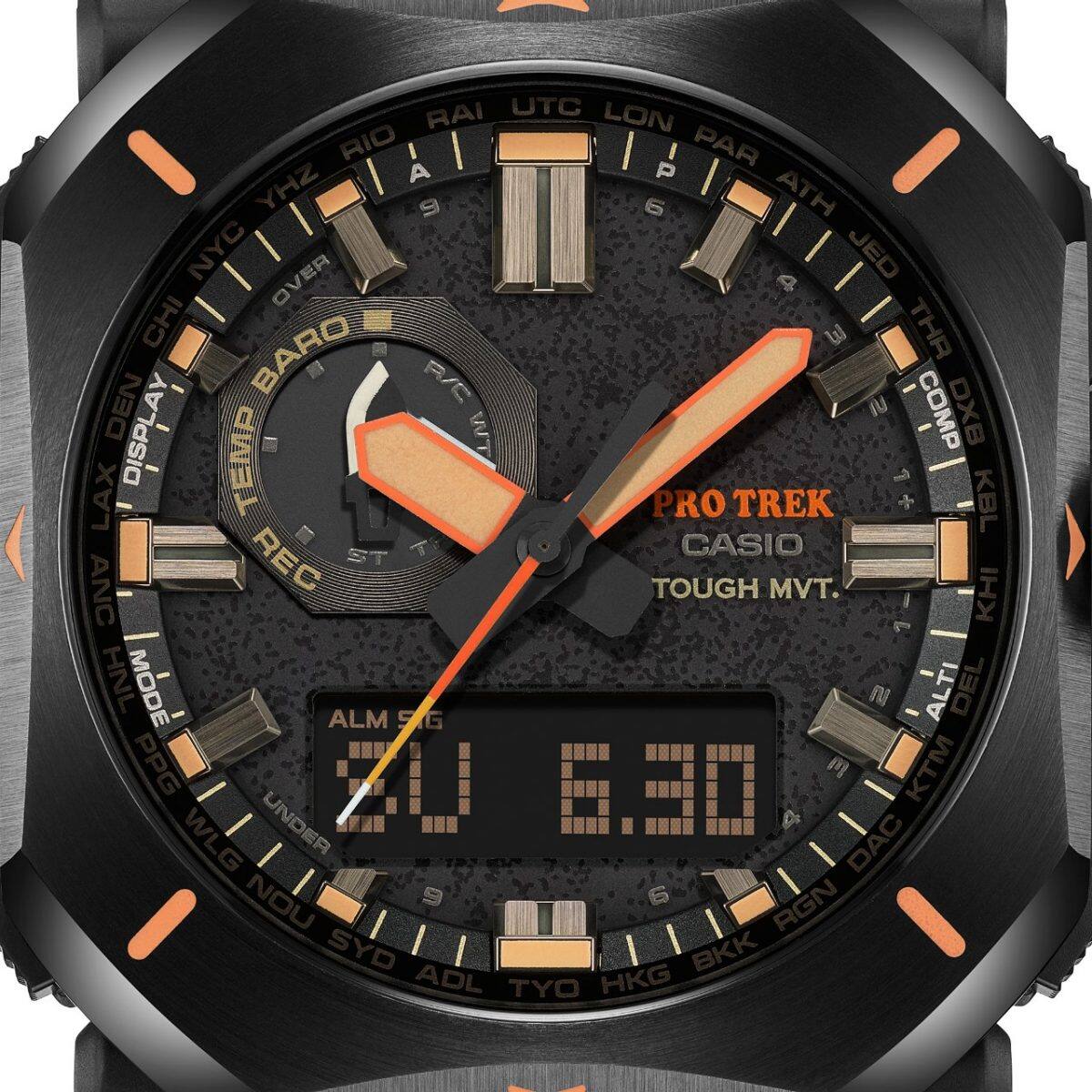

Dial design inspired by survival tools

The base of the dial features a cast iron-like surface reminiscent of a Dutch oven, achieved by print using matte and clear toners. The index marks are ground and then textured with a vapour deposition treatment for a metallic look, while the mode indicator hand in the 9 o’clock inset dial is designed to evoke a camping knife. The hour, minute, and second hands feature a color scheme reminiscent of campfire flames.

FEATURE 3

Eco-friendly biomass plastics

The major resin components, including the case, case back, and band, are all made with the eco-friendly green material known as biomass plastics. Using renewable organic resources such as castor oil plants and corn helps reduce the ecological footprint of this watch. As an outdoor brand, PRO TREK is committed to coexisting well with nature, even down to the manufacturing processes used to make it.
