Dimension Shifter: Next-gen Guitar Effects Expression Pedal

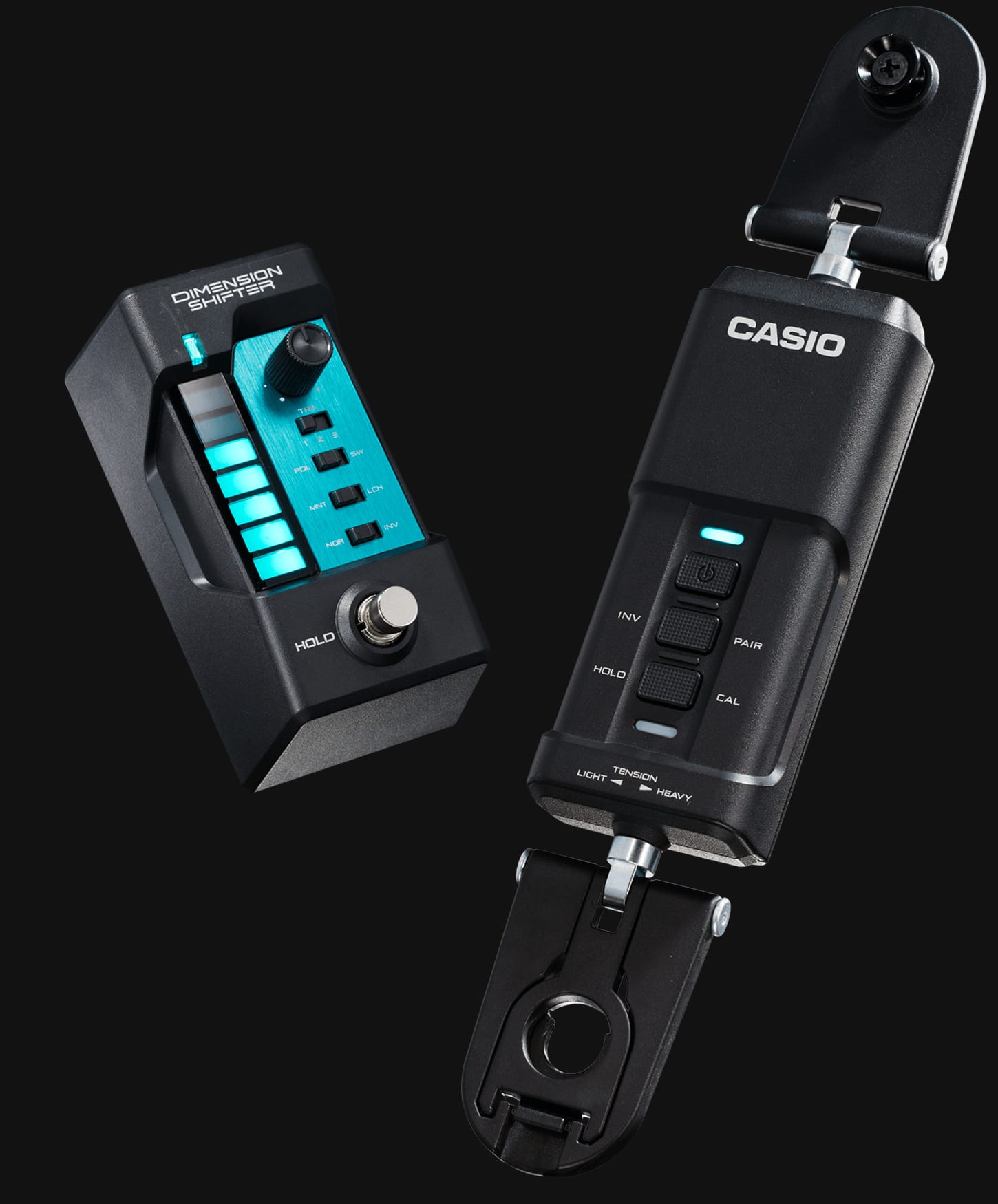

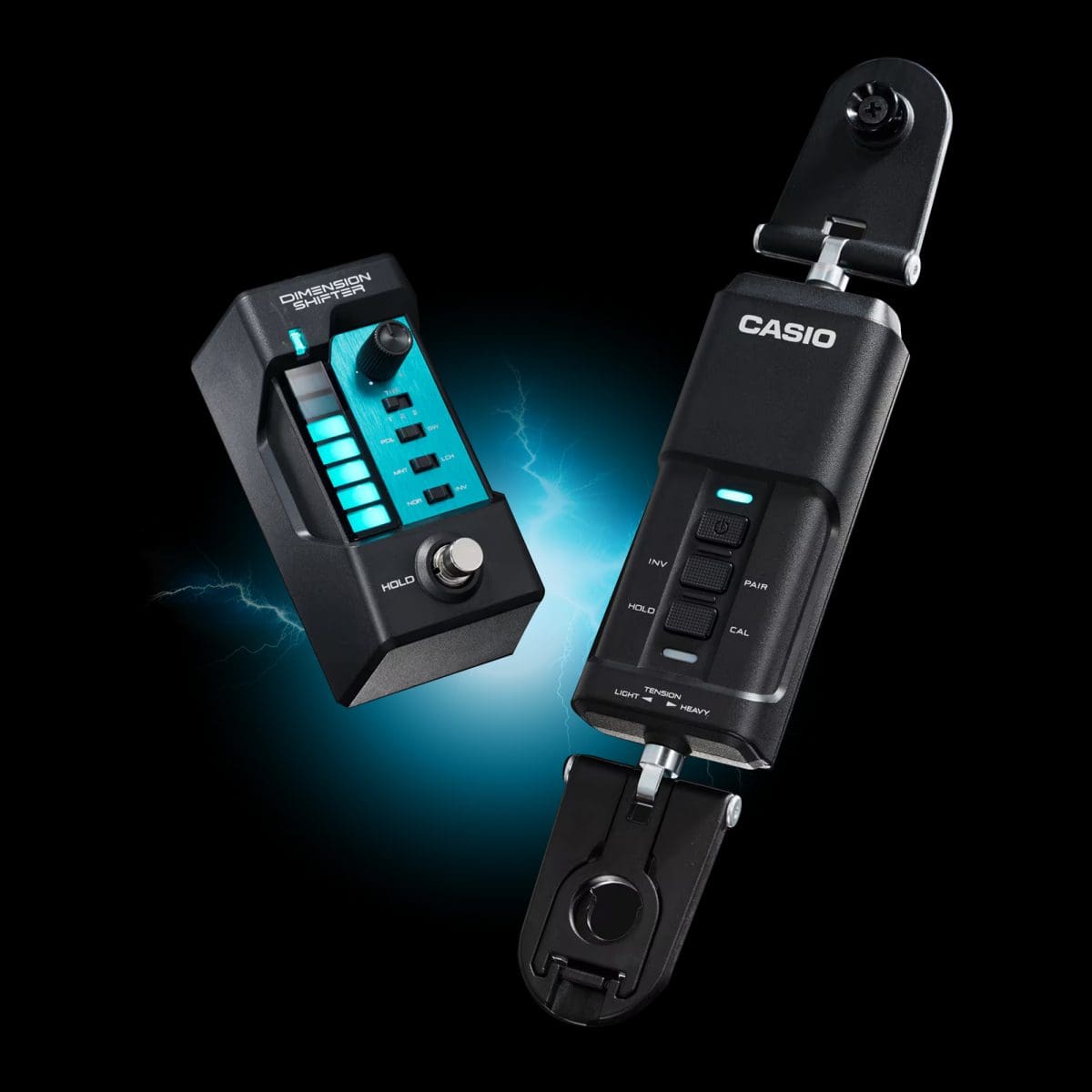

DIMENSION SHIFTER is a wireless next-gen guitar expression controller that lets players control effects through natural guitar movement. The transmitter attaches to your guitar and strap, while the receiver connects to effects gear with an EXP/CTRL or expression input.

DIMENSION SHIFTER is not a traditional foot-operated guitar expression pedal. Instead, it gives guitarists another way to control expression by turning movement of the guitar and strap into real-time effects control.

DIMENSION SHIFTER can control effect parameters assigned through your connected effects pedal/processor, such as volume, volume swell, tremolo speed, wah position, and more. Other available parameters depend on the pedal or effects unit being used.

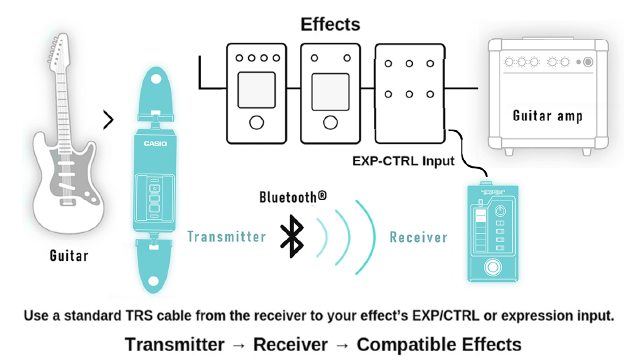

Attach the transmitter to your guitar and strap, then connect the receiver to your effect's EXP/CTRL jack using a standard TRS cable. Turn both the transmitter and receiver on, and they will pair wirelessly and automatically.

DIMENSION SHIFTER is designed to work with pedals and effects gear with an expression input (EXP IN, EXP/CTRL). The receiver features a TRS switch that let you select from three common wiring options, giving it broad compatibility across different effect brands.

You'll need a standard commercially available TRS cable to connect the receiver to your effects gear. A regular TS guitar or instrument cable is not the same as a TRS expression cable - TRS (Tip, Ring Sleeve) connectors have two black rings, whereas TS (Tip, Sleeve) connectors have only one.

Yes. DIMENSION SHIFTER can be used alongside a traditional expression pedal, allowing players to control two effects at once: one through natural guitar movement and another through the foot-operated expression pedal.

The transmitter features a built-in adjustable spring tensioner. By twisting the transmitter, players can adjust the feel to match the weight of the guitar and their preferred playing style, making the response more personal and controlled.

Yes. The transmitter's spring has a maximum travel of 20 mm, and the CAL button lets players set the active range. This helps tailor DIMENSION SHIFTER's response to the player's movement and setup.

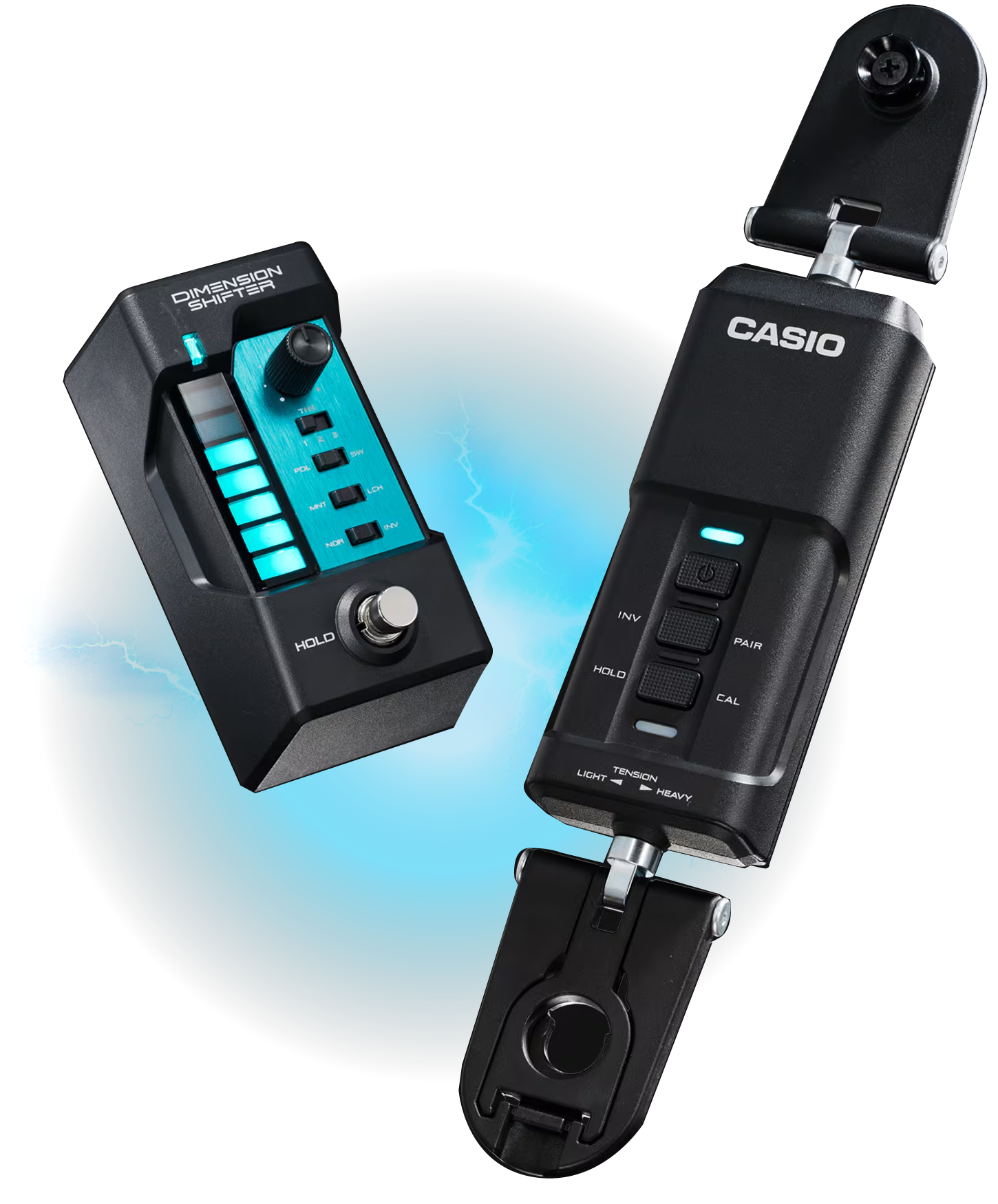

DIMENSION SHIFTER includes a silicone cover for the transmitter to help protect your guitar's finish. Use it as needed to reduce impact and help prevent scratches or damage.

The transmitter can be attached to most guitars with standard strap pin shapes. However, it may not be compatible with certain non-standard or specialized strap pins.

DIMENSION SHIFTER uses Bluetooth 5.1 wireless connectivity, with a transmission range of up to 30 feet depending on the usage environment and latency of approximately 20 ms depending on conditions.

No. Just as traditional guitar effects pedals do not often come with a power supply, DIMENSION SHIFTER does not include one. An AC adapter for DIMENSION SHIFTER can be purchased separately.
