Gynecology

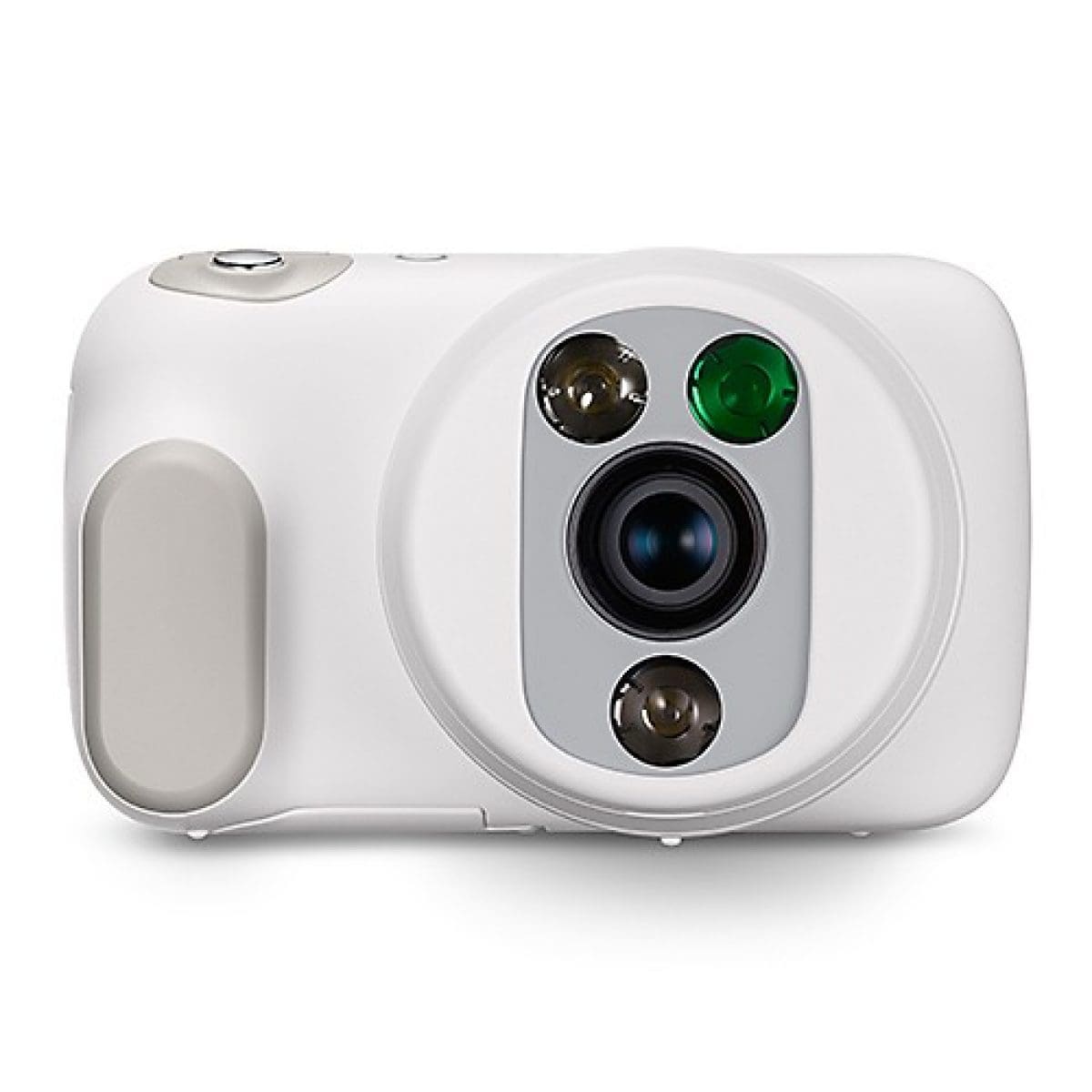

DZ-C100: COLPOCAMERA
This camera for cervix observation and photography was designed to meet the requests of front-line clinical practitioners. Casio has packed its proprietary photographic and image processing technologies into a single camera to create functions that are useful for cervix observations. Optimal miniaturization for front-line clinical practitioners has been achieved by combining the lighting and photography functions into one device. Bundled accessories: Lithium-ion battery (DNP-100M), AC adapter for charging main body, lens cap
DZ-C100
This camera for cervix observation and photography was designed to meet the requests of front-line clinical practitioners.
Casio's unique camera and image processing technologies have been integrated into this single unit to provide useful functions for cervical observation.
Optimal miniaturization for front-line clinical practitioners has been achieved by combining the lighting and photography functions into one device.

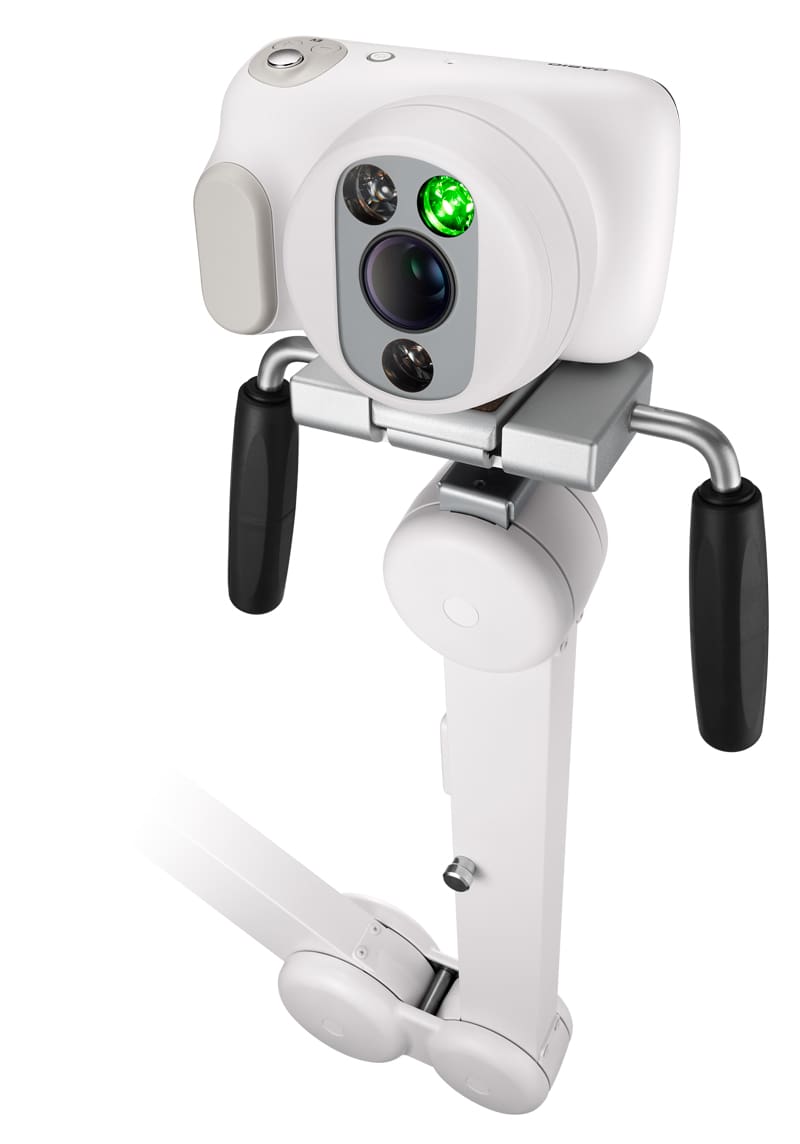

Operability is enhanced by using together with a camera stand designed to be compact and convenient to use. This easy-to-operate observation tool provides steady support for medical professionals.
Basic information
Product name
COLPOCAMERA / DZ-C100

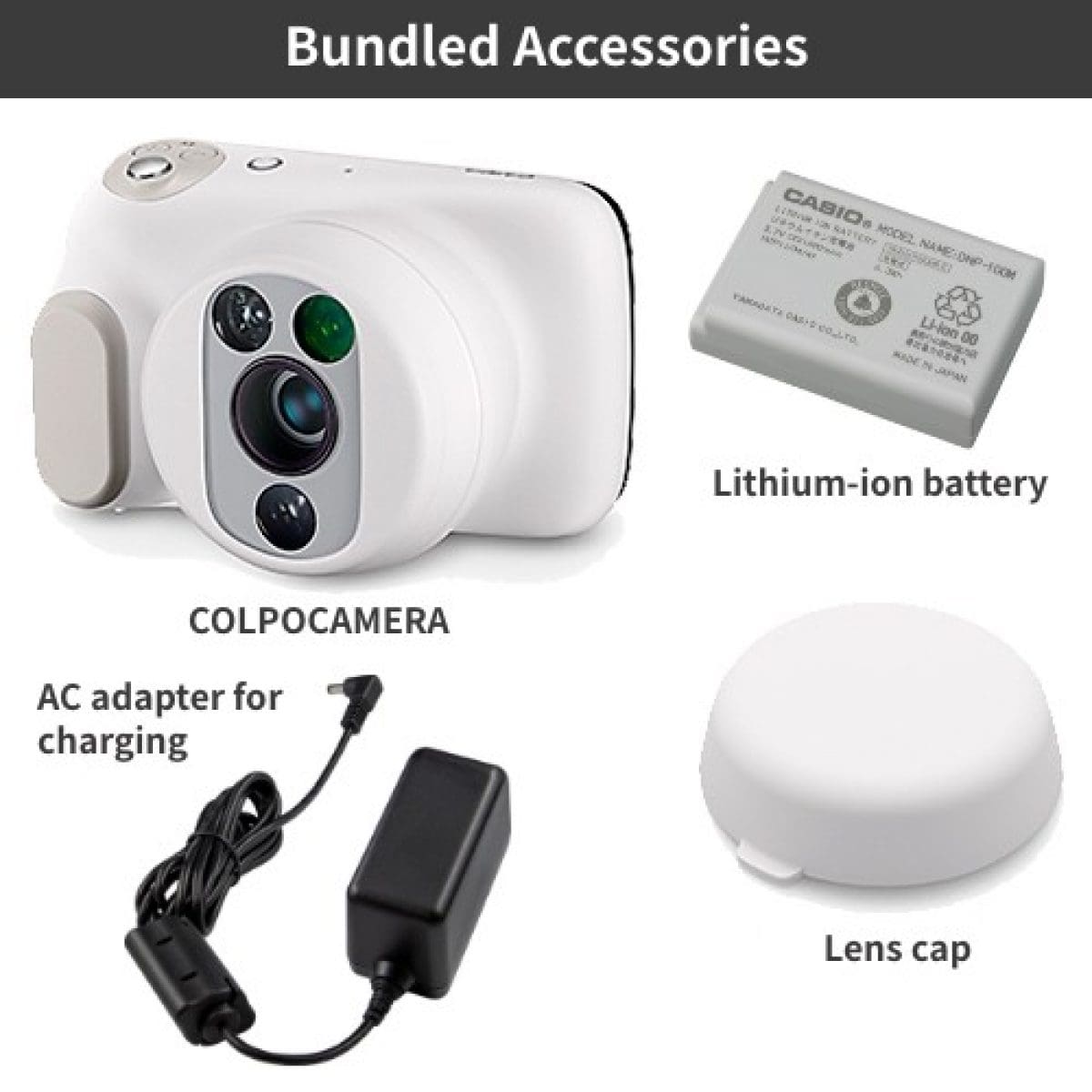

Bundled Accessories
Lithium-ion battery (DNP-100M), AC adapter for charging, lens cap
Detailed function
Normal light, Green light, Polarized light modes with single shutter
Three kinds of images can be taken in normal, green and polarized light with the same angle of view with a single shutter release.
This mode shines a white light to enable simple examination.
This mode makes the observation of vascular findings easy by shinning a green light. Adjustable in ±3 steps. The attached image above is ±0
This mode blocks light emission from the surface, making it easier to observe the condition of the uterocervical surface.

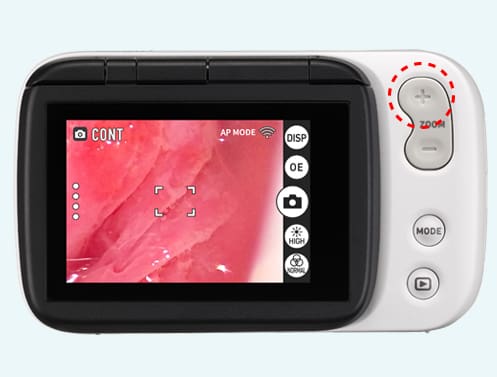

Easy-To-Use Touch Focus Function
When touching the part on the LCD monitor, the camera automatically focus for the subject it is pointed out.
The focused on position can be enlarged with the ZOOM button.
The focusing frame moves to the touched position, and the area is focused on.
The focused on position moves to the center of the LCD monitor to allow the affected area to be enlarged for observation.
Quick and Easy Photo Capture and Video Recording
After focusing, you can take a photo also by pressing the shutter on the monitor.
In addition, with video shooting, by operation on the LCD monitor, you can start and stop recording, or change the focused on position.
The video function can be used to record the time between disappearance and definition of capillaries observed in an acetic acid test.
Photos can be taken by shutter operation on the LCD monitor
Record video of the changes during an acetic acid test.

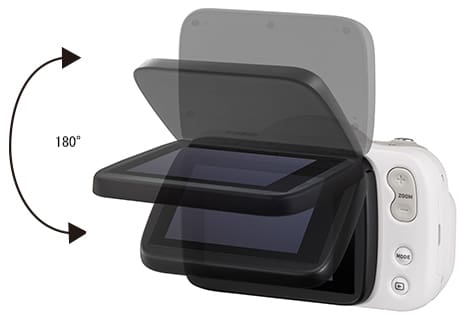

Easy to view : Adjustable LCD monitor
The LCD monitor can be tilted to different angles for easy visibility under all conditions
External monitor HDMI connector
The camera can be connected via HDMI cable to a large monitor or projection screen for viewing of images, either in real time or afterwards. This is useful for providing explanations to patients or making presentations at conference.
The terms HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
Accessories (sold separately)

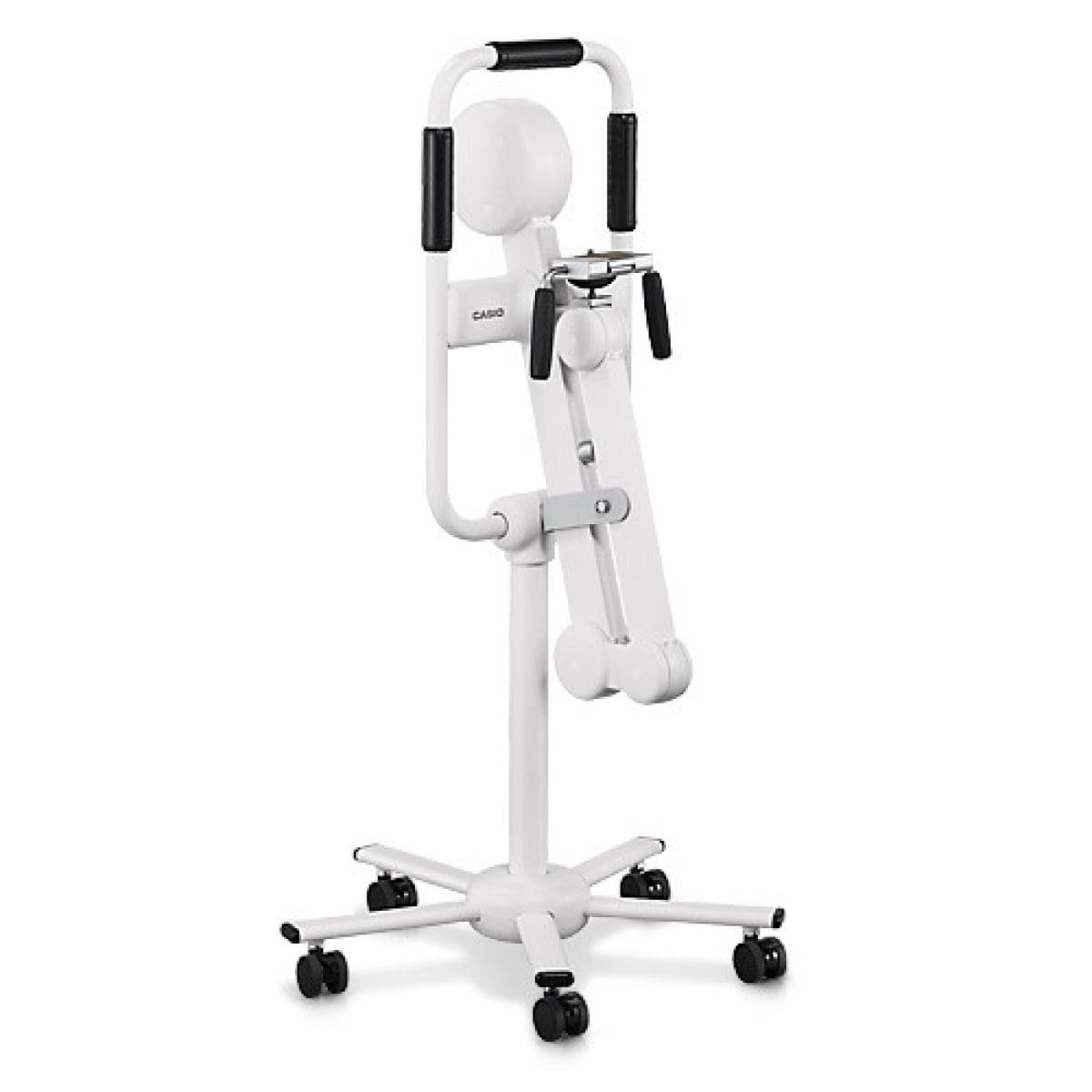

CAMERASTAND CST-100M
A specially designed stand allows for smooth and precise camera movement for easy positioning during observation. It is compact, lightweight, and designed for excellent maneuverability and storage convenience.
D'z IMAGE Viewer C(Image management software)
More efficient image management and observation with PC
COLPOCAMERA photos and videos can be easily managed on a personal computer using the D'z IMAGE Viewer C application software.
This software helps you magnify and convert images easily.
Operation environment:
【OS】Windows®11,Windows®10
- Only 64-bit version.
- Display : Recommended 1280＊720（16 : 9）TRUE COLOR (32bit) color, or higher
Operation environment:【OS】Windows®11,Windows®10

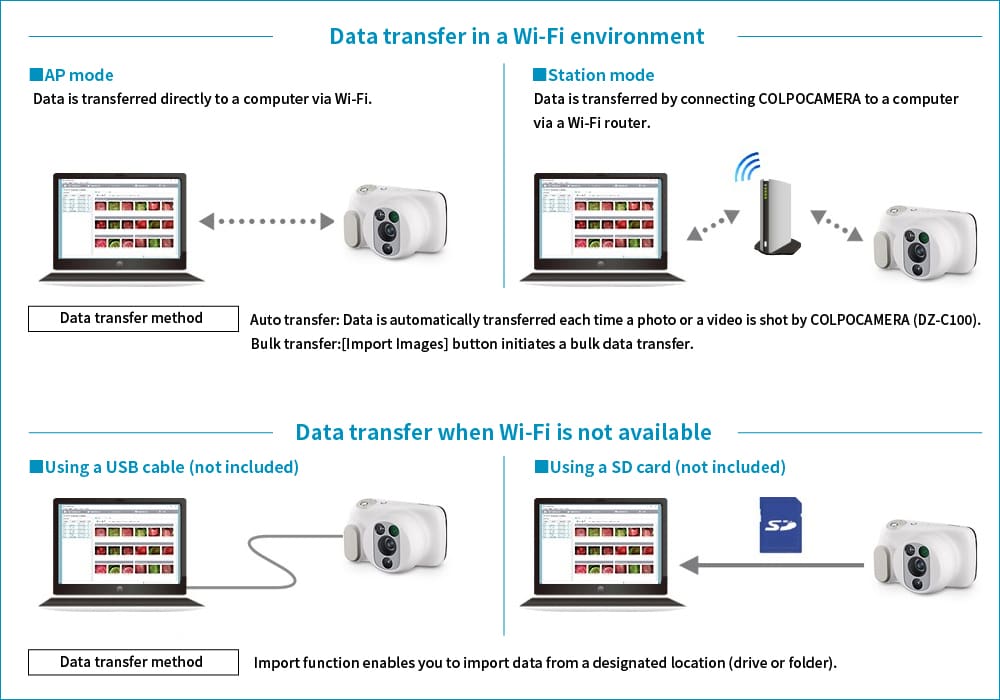

Data transfer to PC
Data transfer method (USB cable and SD memory card are not included. The camera's USB jack is a micro USB.)

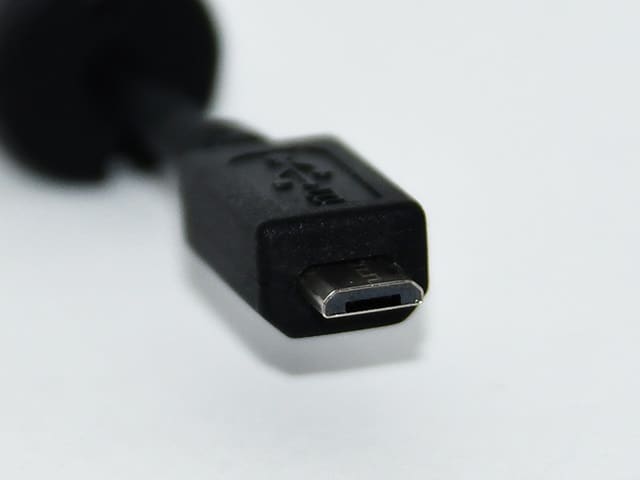

About USB cable
Use a USB 2.0 (Hi-Speed) compliant cable with a micro USB Type B connector for the camera port.
Please note that some cables are charge-only, which are not capable of data transfer.
Automatic sorting by patient ID
D'z IMAGE Viewer automatically sorts images tagged with patient IDs.
Advanced Image Tools and Features
Displaying images
Users can inspect images from COLPOCAMERA in great detail.
Image scaled to 1:1
Enlarged image

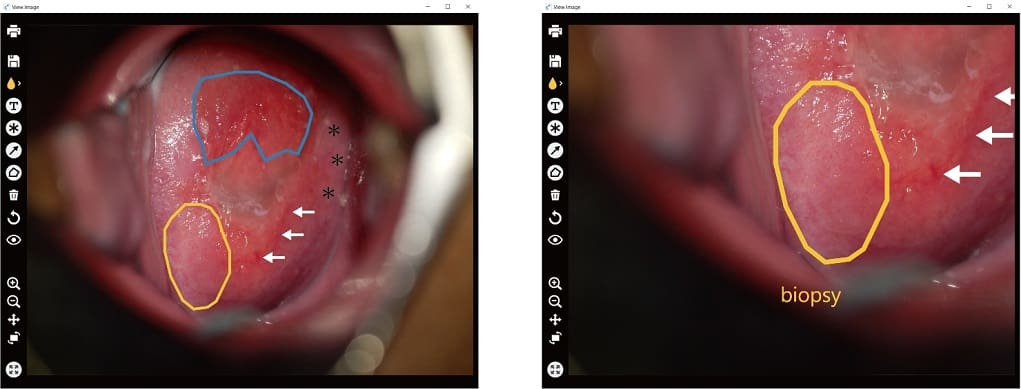

Marking function
Users can mark images and write text to the images.
Displaying multiple images
Multiple selected images can be displayed in the same screen.
The same lesions can be compared in chronological order, or similar lesions can be viewed and compared side by side.

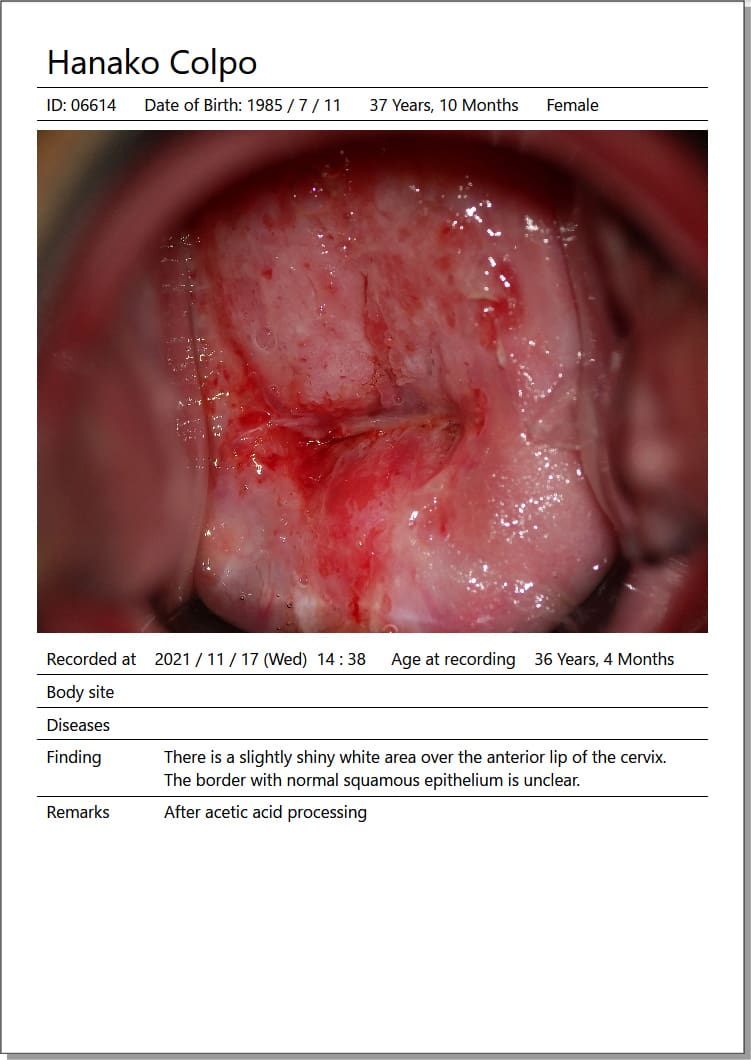

Printing function
Lesion information attached to an image can be printed for referrals to other medical institutions or requesting opinions from other doctors.
Tagging images
Images can be individually tagged with such information as “name of disease,” “location,” “size,” etc.
Searching images
The desired images can be searched by “name of disease,” “name of patient,” “age,” “gender” and other criteria.
Outputting images
Image data can be exported with patient ID information deleted, enabling safe use for papers, etc.
Operation environment:【OS】Windows®11,Windows®10
Product appearance
Designed with the comments of doctors in mind
The grip features an easy-to-hold shape, and the round shape of the camera is soothing to jittery patients, while the white color and compact body create a clean appearance. These design features put high priority on the type of usability requested by doctors.

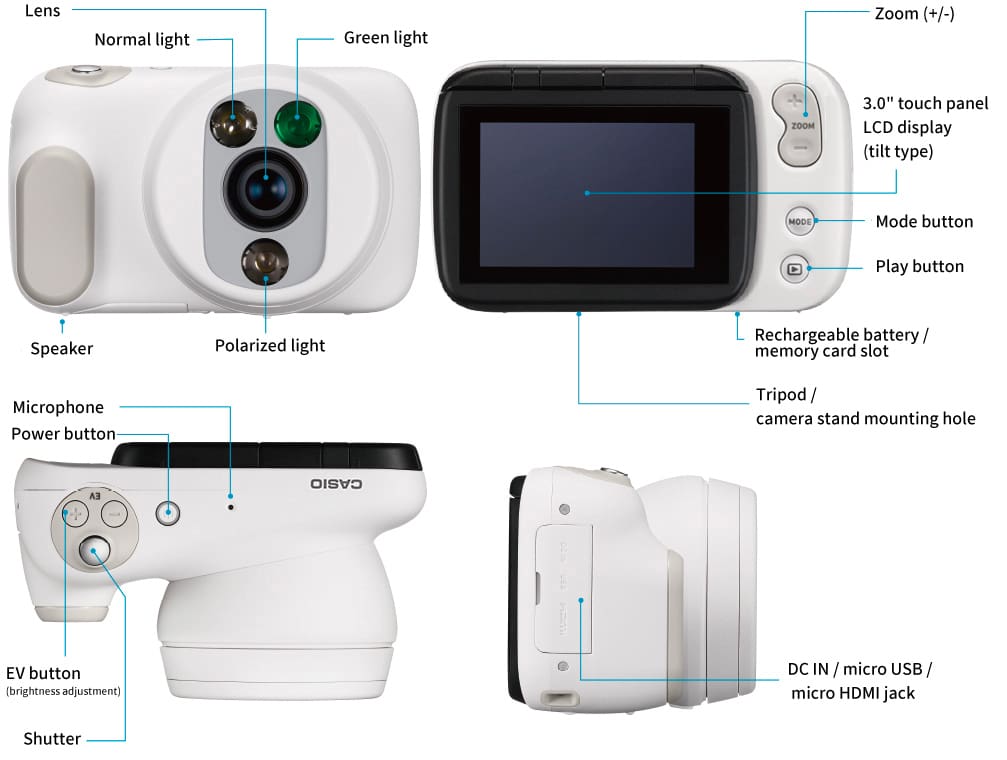

Easy to operate
Frequently used operations are assigned to easily located buttons.
With a single touch of a button, users can switch between shooting modes.
Main specifications
COLPOCAMERA DZ-C100
| Model | DZ-C100 | ||
| Valid pixels | 5184×3888 Approx. 20.16 megapixels | ||
| Imaging element | 1/2.3-inch CMOS (back-illuminated type) | ||
| Total pixels | 5352×3950 | ||
| Approx. 21.14 megapixels | |||
| Imaging file format | Still images | JPEG (Exit Ver 2.3), DCF2.0 compliant, DPOF non-compliant | |
| Recorded pixels：20M（5184×3888）／12M（3968×2976）／5M（2560×1920） | |||
| Video | MOV format, H264/AVC-compliant, IMA-ADPCM audio (monaural) | ||
| Recorded pixels: 1600×1200 (UXGA), 30 fps | |||
| Recording Media | SD Memory Card, SDHC Memory Card, SDXC Memory Card | ||
| Recording capacity | Still images | Recording media 16GB | 1,860 shots |
| Video | Maximum video file size | Max. 1.4GB per video (10-min. video) | |
| Recording media 16GB | Approx. 1 hr. 55 mins. | ||
| Lens | Construction | 10 elements in 7 groups | |
| F-number | F3.3 | ||
| Focal distance | f=33.43 | ||
| 35mm Film Equivalent | 233 mm (single-focus lens with filter switching unit) | ||
| Zoom | Digital zoom 8x | ||
| Zoom resulution：0.1x | |||
| ISO Sensitivity (Standard Output Sensitivity) | Auto | ||
| Data transfer method | Wi-Fi / micro USB cable / memory card | ||
| Communication function | Compliant standard: IEEE 802.11b/g/n, range of frequencies used:1‒11 ch, encryption method: WPA2 | ||
| Image monitor | 3.0 TFT color LCD, 720×480 pixels, 1,036,800 dots (RGB) | ||
| Capacitance touch panel | |||
| Power supply | Lithium-ion battery (DNP-100M) × 1 | ||
| Battery life | Number of shots | Approx. 195 shots | |
| Actual video recording time | Approx. 45 mins. (during continuous recording) | ||
| Size | 127.5 × 76.0 × 78.0 mm (5.0" × 3.0" × 3.1") (W × H × D) | ||
| Weight | Approx. 430 g (15.2 oz) (incl. Lithium-ion battery & memory card), approx. 380 g (13.4 oz) (w/o Lithium-ion battery & memory card) | ||
| Bundled accessories | Lithium-ion battery (DNP-100M), AC adapter for charging, lens cap, Quick Start Guide, Warranty | ||
CAMERASTAND CST-100M
| Model | CST-100M | |
| Size | When using | Range of arm up/down motion: 300 mm, range of rotation: 360° |
| When stored away | Diameter 513 mm, height 924 mm | |
| Weight | Approx. 13.5 kg (476.2 oz) | |
| Bundled accessories | User’s Guide, Warranty | |
