G-SQUAD
GBA-800 Seires

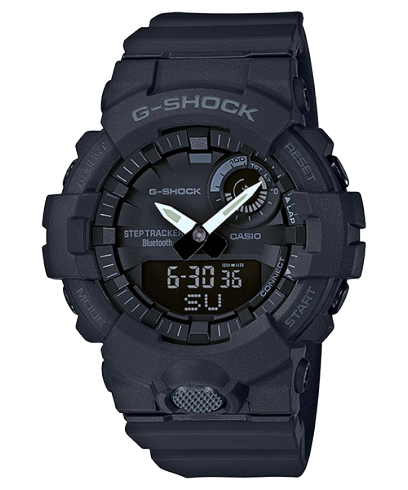

GBA-800-1A

My GShock

G-SQUAD G-SHOCK, the watch brand that is always finding ways to blend diverse world culture into fashionable street scene timepieces, announces new GBA-800 urban sports themed models for athleisure wear. The watch itself and its Bluetooth communication capabilities are designed and engineered to make sports activities even more fun. Linking with the G-SHOCK Connected phone app provides access to a number of functions to support your workouts. Daily health and fitness support functions include a 3-axis accelerometer that keeps track of your step count, a Countdown-Timer that lets you create up to 20 timer combinations of five timers each, memory for up to 200 lap records, and more. While linked with the G-SHOCK Connected phone app, you can configure settings for a step count log with five exercise intensity levels, calorie calculations, and step targets. The ability to use the app to create timer combinations and send them to the watch, to store stopwatch measurement data, to view data, and more all combine to help you plan and record your workouts, making them more effective and enjoyable. Other features include app-based auto time setting correction and other features for more efficient timekeeping, and an Auto Double LED Light to facilitate workouts in areas where lighting is dim. The small cases of these models are great for sports wear. Back wings on the inside of the bands where they connect to the case, a new band ring shape that prevents sliding, more band holes to allow better tightness adjustment, and a soft urethane band, which maintains its suppleness even after long wear all add up to a more comfortable fit. A mid-size design that's optimal for running and training, Bluetooth, phone app linking and much more makes the GBA-800 the perfect choice for sports wear. • Smartphone link functions • Step Count Graph with five exercise intensity levels • Calories burned display • Combinable timers • Stopwatch measurement data log • Auto time adjustment (4 times a day) • Easy watch settings • World Time for approximately 300 cities • Time swapping • Hand position correction • Step count using a 3-axis accelerometer (Step Count Graph, step goal progress graphic) • Stopwatch with Target Time alarm (lap/split display switching, up to 10 Target Times, 200 lap time records) • Interval measurement timer with up to five time settings (Auto repeat up to 20 times, skip, auto start, alert sound) • Hand shift feature • Super Illuminator (double) illuminates the face and digital display

GBA-800-1A
GBA-800-1A
GBA-800-1A
GBA-800-1A

Specifications

Price
MSRP RM536.00
Case size (L× W× H)
54.1 × 48.6 × 15.5 mm
Weight
61 g
Case and bezel material
Case / bezel material: Resin
Band
Resin Band
Construction
Shock Resistant
Water resistance
200-meter water resistance
Power supply and battery life
Approx. battery life: 2 years on CR2016
Sensor feature
Step count using a 3-axis acceleration sensor: 0 to 999,999 step count display range Step Goal Progress Display (step count goal setting range: 1,000 to 50,000, 1,000-step increments) Step Count Graph: Hourly step count for the past 11 hours on a 6-level graph Step indicator Power Saving: Auto sensor sleep state entry after fixed period of non-activity

Smartphone Link feature
Mobile link (Wireless linking using Bluetooth®)
Apps
G-SHOCK Connected

Glass
Mineral Glass
Other
Neobrite

World time
Dual time (Home time swapping)
Stopwatch
1/100-second stopwatch Measuring capacity: 00'00''00~59'59''99 (for the first 60 minutes) 1:00'00~23:59'59 (after 60 minutes) Measuring unit: 1/100 second (for the first 60 minutes) 1 second (after 60 minutes) Recorded data: Up to 200 records (measurement start month, date, lap/split times) Target Time alarm up to 10 Target Time settings
Timer
Countdown timer Timer for interval measurement (up to five time settings) Measuring unit: 1 second Input range: 00'00" to 60'00" (1-second increments) Others: Auto-repeat (number of repeats settable from 1 to 20), auto start Hand shift feature (Hands move out of the way to provide an unobstructed view of digital display contents.)
Alarm/hourly time signal
5 daily alarms
Hourly time signal
Light
Double LED light LED light for the face (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow) LED backlight for the digital display (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
Light color
LED:White
Calendar
Full auto-calendar (to year 2099)
Mute feature
Button operation tone on/off
Accuracy
Accuracy: ±15 seconds per month (with no mobile link function)
Other features
12/24-hour format
Regular timekeeping: Analog: 2 hands (hour, minute (hand moves every 20 seconds)) Digital: Hour, minute, second, pm, month, date, day

G-SQUAD featuring TEAM G-SHOCK

Surf
Kanoa Igarashi



Features

Band with superior wearability

The 15-hole band is designed to enable fine adjustments. The case is equipped with a special case back protector, to assure a comfortable fit.

Band with superior wearability
STEP TRACKER

STEP TRACKERHealth Management & Physical Fitness

STEP TRACKER

[Step-counting Function]

A built-in 3-axis acceleration sensor begins counting steps the moment you start to walk.

A step number level graph at 6 o'clock shows the current step number and the number 1 hour earlier,
and a status indicator window in the upper right area of the dial displays the target achievement rate.
This data can help motivate you to increase your step count.

[App] Step Count Measurement Data Transfer

Step Count Measurement Data Transfer 1
Step Count Measurement Data Transfer 2
Step Count Measurement Data Transfer 3
Step Count Measurement Data Transfer 4

Measurement data can be transferred for use to a dedicated app. In addition to manual transfers, the app conducts automatic transfers four times a day.
Besides recording daily step counts and calorie consumption, the app displays a step count graph showing step counts, calories and exercise intensity (5 levels) for each day, week and month.
When activated by the smartphone, the step count is displayed graphically on a map every 30 minutes.

TIMER

For Interval Workouts

TIMER

A multi-timer function useful for interval workouts can be set for up to five different times.
The time remaining on the timer (%) is indicated in the status indicator window to the upper right on the dial.
Auto Repeat (maximum 20 times) and Auto Start are available along with an announcement notice function.

[App] Create Timer Menu

Create Timer Menu 1
Create Timer Menu 2
Create Timer Menu 3

Up to 20 sets of 5 timers can be set up on the dedicated app. This makes it easy to create a menu of workouts and intervals as sets of workouts and break times that repeat within a certain period. You can save the menus you create under individual titles. You can then call them up instantly according to the day of the workout and transmit the settings to the watch.

STOPWATCH

Time Measurement &

Pace Management

STOPWATCH

A 1/100-second stopwatch capable of storing up to 200 lap-time memories is installed. Its ability to set up to 10 target times is useful for confirming your pace.

[App] Stopwatch Measurement Data Transfer

Stopwatch Measurement Data Transfer 1
Stopwatch Measurement Data Transfer 2
Stopwatch Measurement Data Transfer 3
Stopwatch Measurement Data Transfer 4

A special app is available for setting target times. Stopwatch measurement data can be transferred, moreover, with measurement/target time differences and the best/worst/average times displayed together on the app. The results can be managed as log memory data and fed back into daily workouts.

* App screens shown here may differ from actual screens,since the app is currently under development.
G-SHOCK Connected

G-SHOCK Connected FREE

Smartphone App



- Auto Time Adjustment (4 times a day)
- World Time city setting (over 300 cities)
- Home Time / World Time switching
- Time alarm setting
- Daylight Saving Time / Automatic time zone information update
- Mobile phone search
- Auto Hand Home / Position Correction
- Step count measurement data transfer
- Timer menu creation

Supported Phone Models (As of December 2017)

iOS: iOS 10 or later
Android: Android 6.0 or later

* Bluetooth installed smartphone only.
