MASTER OF G - LAND

GW-9400-1

My GShock

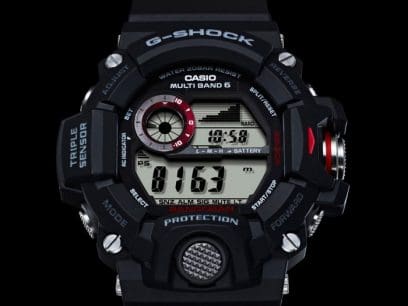

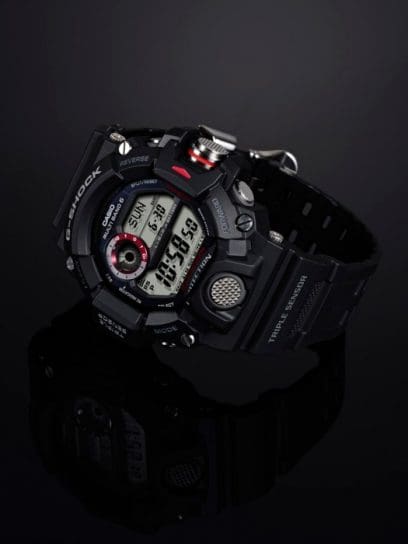

Introducing RANGEMAN, the latest addition to the Master of G series of tough and rugged timepieces that are designed and engineered to stand up to the most grueling conditions imaginable. RANGEMAN is Triple Sensor equipped, which makes it capable of keeping altitude, barometric pressure, temperature, and direction readings at your fingertips. Cylindrical buttons provide outstanding operation and improved resistance to impact. The frequently used sensor button (center right) has a metal cover that protects it against lateral impact and keeps foreign matter out. Pressing the sensor button in any mode takes you directly to a sensor screen. Each sensor mode has its own audible tone, which means you can determine which mode you are entering without even looking at the watch. All of this plus one-touch time recording, one-touch elapsed time measurement, world-renowned G-SHOCK toughness and durability, and much more makes RANGEMAN the perfect choice for rangers, rescue crews, and anyone else whose profession or activities demand unfailing reliability.

GW-9400-1
GW-9400-1
GW-9400-1
GW-9400-1
GW-9400-1
GW-9400-1
GW-9400-1
GW-9400-1

Specifications

Price
MSRP RM1,546.00
Case size (L× W× H)
55.2 × 53.5 × 18.2 mm
Weight
93 g
Case and bezel material
Case / bezel material: Resin
Band
Resin Band
Construction
Shock Resistant
Water resistance
200-meter water resistance
Time adjustment
Radio-controlled Watch; Multi band 6
Power supply and battery life
Tough Solar (Solar powered)
Sensor feature
Altimeter Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.) Measuring unit: 1 m (5 ft.) Altitude Memory Function: Manual Readings: 40 records, each containing date and time, direction angle, altitude, barometric pressure, and temperature Auto Save Data: High altitude, low altitude, cumulative ascent, cumulative descent (1 value each) Others: Relative altitude readings (-3,000 to 3,000 m) Selectable measurement interval: 5 seconds or 2 minutes *1 second for first 3 minutes only *Changeover between meters (m) and feet (ft)
Barometer Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg) Display unit: 1 hPa (0.05 inHg) Atmospheric pressure tendency graph (past 42 hours of readings) Atmospheric pressure differential graphic Barometric pressure tendency information alarm (beep and arrow indicate significant changes in pressure) *Changeover between hPa and inHg
Digital compass Measures and displays direction as one of 16 points Measuring range: 0 to 359° Measuring unit: 1° 60 seconds continuous measurement Graphic direction pointer Bidirectional calibration Magnetic declination correction Bearing memory
Thermometer Display range: -10 to 60℃ (14 to 140℉) Display unit: 0.1℃ (0.2℉) *Changeover between Celsius (℃) and Fahrenheit (℉)

Glass
Mineral Glass

World time
World time 31 time zones (48 cities + coordinated universal time), daylight saving on/off
Sunrise/sunset display
Sunrise, sunset time display Sunrise time and sunset time for specific date, daylight pointers
Stopwatch
1/100-second stopwatch Measuring capacity: 999:59'59.99'' Measuring modes: Elapsed time, split time, 1st-2nd place times
Timer
Countdown timer Measuring unit: 1 second Countdown range: 24 hours Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)
Alarm/hourly time signal
5 daily alarms (with 1 snooze alarm)
Hourly time signal
Light

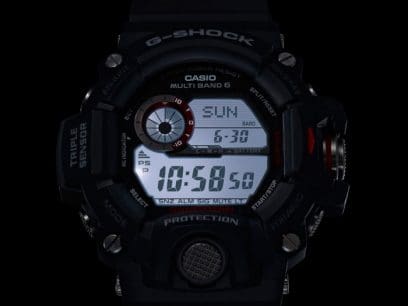

LED backlight (Super Illuminator) Full auto LED light, selectable illumination duration, afterglow
Light color
LED:White
Calendar
Full auto-calendar (to year 2099)
Mute feature
Button operation tone on/off
Energy saving feature
Power Saving (display goes blank to save power when the watch is left in the dark)
Battery display/alert
Battery level indicator
Run time
Approx. battery operating time: 8 months on rechargeable battery (operation period with normal use without exposure to light after charge) 23 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Accuracy
Accuracy: ±15 seconds per month (with no signal calibration)
Other features
12/24-hour format
Regular timekeeping: Hour, minute, second, pm, month, date, day
Time adjustment details
Time Calibration Signals Station name: DCF77 (Mainflingen, Germany) Frequency: 77.5 kHz Station name: MSF (Anthorn, England) Frequency: 60.0 kHz Station name: WWVB (Fort Collins, United States) Frequency: 60.0 kHz Station name: JJY (Fukushima, Fukuoka/Saga, Japan) Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga) Station name: BPC (Shangqiu City, Henan Province, China) Frequency: 68.5 kHz
Time calibration signal reception Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal Manual receive The latest signal reception results
Sensor feature details
Manual data recording of up to 40 records (altitude, barometric pressure / temperature, bearing, time (Time Stamp))

Features

TECHNOLOGY

Triple sensor ver.3

Equipped the Triple Sensor Ver.3 in a shock-resistant structure.

Three small sensors measure orientation, altitude, barometric pressure, temperature, and direction at high speed and with high accuracy, providing the information necessary to survive in harsh conditions.

Direct button for quick and reliable measurement

Triple sensor ver.3

Time Stamp Button

The time stamp function allows the ability to save measurement results number of altitude, barometric pressure, temperature, and direction up to 40 time logs with time. And can be used for activity records and action plans.

Direct Sensor Button

The sensor measurement buttons are concentrated in one place and enlarged. With a single push of the button, available to move to the measurement immediately.  Three type of beeps indicate the measurement mode, and the mode can be changed by blind operation.

Stopwatch Button

1/100 Second Stopwatch with Direct Access Measuring capacity. It can be measured with a dedicated button, and is useful for survival training

Altimeter

Altimeter

Digital Compass

Digital Compass

Barometer / Thermometer

Barometer / Thermometer

Cylindrical button guard structure

Cylindrical button guard structure

The new button guard structure enables smooth and precise button operation.

In addition to mitigating side impact, which is a weak point of button shafts, the pipe shape serves as a guide and contributes to the stability of button stroke.

The button shaft is fitted with a gasket to ensure airtightness and 200 meter water resistance.

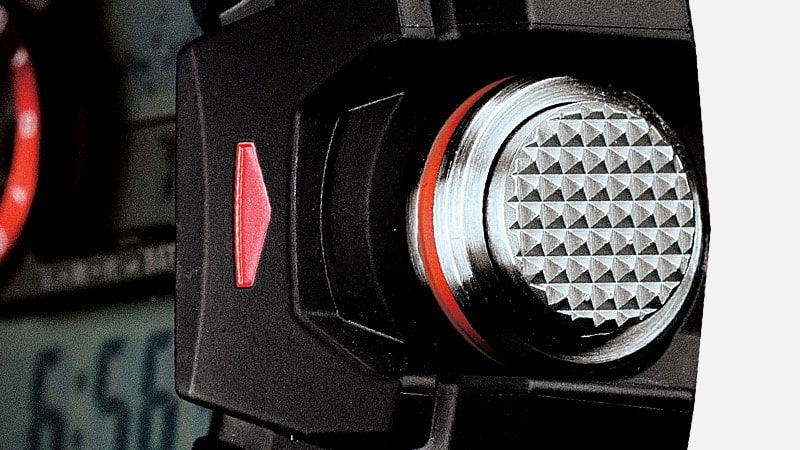

Stainless Button Pipe

Stainless Button Pipe

A stainless steel metal pipe is used for the direct sensor button.

The sensor measurement buttons which are frequently used and require reliable operation, are guarded more firmly.

QUALITY / DESIGN

Toughness Design

Toughness Design

Toughness to withstand hard use and easy to operate button layout are realized at the same time. The stud design is based on button shafts that are driven into the case from various directions.

Anti slip button

Anti slip button

The large stainless steel buttons are knurled and designed for reliable operation even when wearing gloves or rainy conditions.

Wide face

Wide face

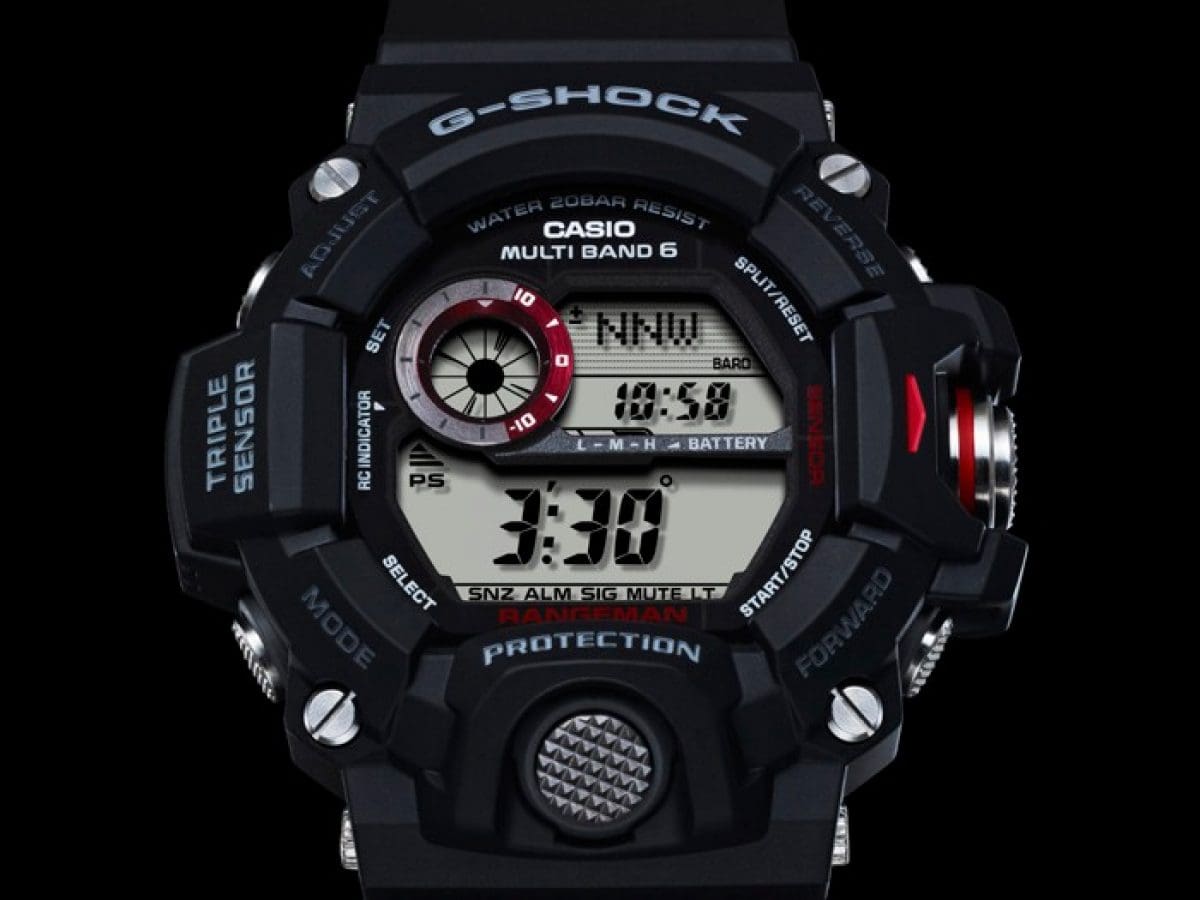

The large diameter dial is easy to read even outdoors, and the circular motion graphic display and two level digital display are functionally laid out.

A variety of digital expressions, such as altitude and barometric pressure trend  graphs, are also available to support a precise grasp of measurement values.

*The color tone of the listed products may differ from the actual product in some cases.
