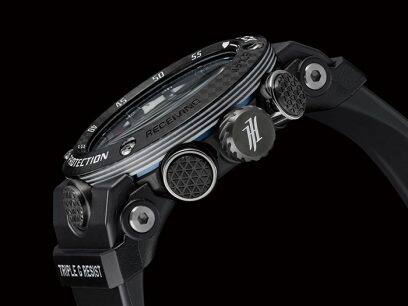

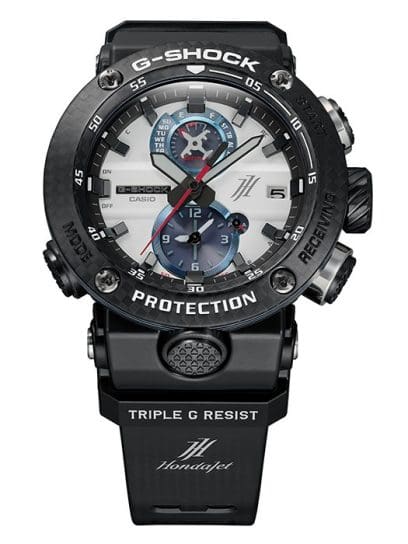

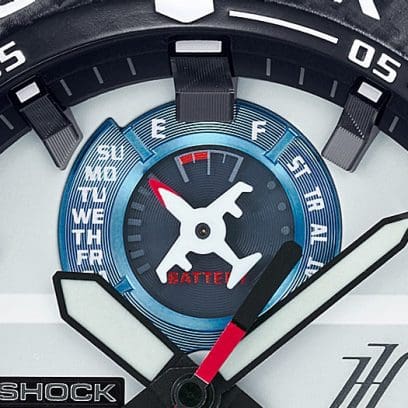

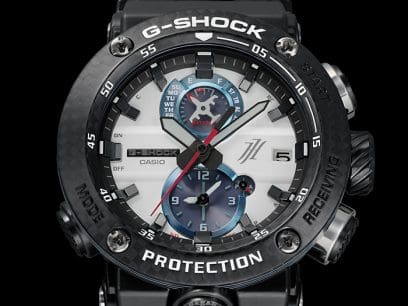

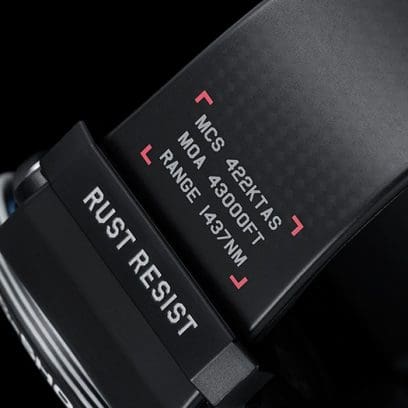

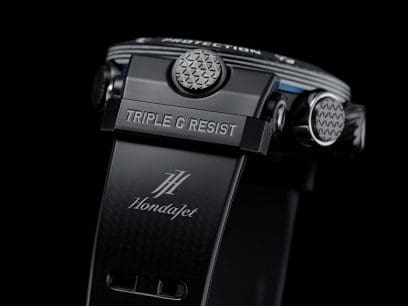

MASTER OF G GRAVITYMASTER A G-SHOCK GRAVITYMASTER series model made in collaboration with HondaJet for pilots who work under harsh conditions. The model is based on the GWR-B1000 equipped with a carbon core guard structure and Triple G Resist. The design was supervised by Mr. Michimasa Fujino, who is head of design and development for HondaJet. Mr. Fujino used the design to express his own passions, as is seen in the indicator at the 12 o'clock position that resembles a HondaJet plane. The overall design is based on the typical HondaJet Elite color scheme. The laminated parts of the dial and bezel are white, while the inner dial, case, and bezel are metallic blue to express sophisticated beauty mixed with strength. The shape of the blades of the engines placed on the upper surface of the wings, which are a feature of the HondaJet, is reproduced in the crown, and the engine caps are reproduced in the button pipes. Additionally, the band on the 12 o'clock side shows the HondaJet's top-class flight performance (MCS: Maximum Cruising Speed, MOA: Maximum Operating Altitude, and RANGE: Cruising Range), and the band on the 6 o'clock side displays the HondaJet logo. This is a special collaboration reflects the resonance between the HondaJet, which has overturned common aircraft wisdom via an innovative design and cutting-edge technology, and G-SHOCK's spirit of facing challenges.

GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A
GWR-B1000HJ-1A

Specifications

Price
MSRP RM4,579.00
Case size (L× W× H)
50.1 × 46.4 × 16.9 mm
Weight
72 g
Case and bezel material
Carbon fiber bezel
Case / bezel material: Carbon
Band
Carbon fiber insert Resin Band
Construction
Rust Resistant
TRIPLE G RESIST (Shock resistant, Centrifugal force resistant, Vibration resistant)
Carbon Core Guard structure
Water resistance
200-meter water resistance
Time adjustment
Radio-controlled Watch; Multi band 6
Power supply and battery life
Tough Solar (Solar powered)

Smartphone Link feature
Mobile link (Wireless linking using Bluetooth®)
Apps
G-SHOCK Connected

Glass
Spherical Glass
Sapphire crystal with glare-resistant coating
Crown
Screw Lock Crown
Other
Neobrite

World time
Dual time 27 time zones, Home city time swapping, auto summer time (DST) switching
Stopwatch
1-second stopwatch Measuring capacity: 23:59'59 Others: Flyback, direct timing start from the timekeeping mode Countdown timer Measuring unit: 1 second Countdown range: 24 hours Countdown start time setting range: 1 minute to 24 hours (1-second increments)
Alarm/hourly time signal
Daily alarm
Light
LED light (Super Illuminator) Afterglow
Light color
LED:White
Calendar
Full auto-calendar (to year 2099)
Hand home position correction feature
The auto hand home position correction
Energy saving feature
Power Saving (hands stop to save power when the watch is left in the dark)
Battery display/alert
Battery level indicator
Run time
Approx. battery operating time: 5 months on rechargeable battery (operation period with normal use without exposure to light after charge) 18 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Accuracy
Accuracy: ±15 seconds per month (with no signal calibration and mobile link function)
Other features
Regular timekeeping: Analog: 3 hands (hour, minute (hand moves every 10 seconds), second), 3 dials (dual time hour and minute, dual time 24-hour, day)
Date display
Day indicator
Time adjustment details
Time Calibration Signals Station name: DCF77 (Mainflingen, Germany) Frequency: 77.5 kHz Station name: MSF (Anthorn, England) Frequency: 60.0 kHz Station name: WWVB (Fort Collins, United States) Frequency: 60.0 kHz Station name: JJY (Fukushima, Fukuoka/Saga, Japan) Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga) Station name: BPC (Shangqiu City, Henan Province, China) Frequency: 68.5 kHz
Time calibration signal reception Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal Manual receive The latest signal reception results

The third material has
the lightness of resin and
a strength exceeding that of metal.

Features

Beginning from the newly developed carbon monocoque case, the watch makes use of
high-performance carbon materials that exhibit strength and lightness in countless locations.
The design achieves the shock resistance required of a pilot’s watch, while at the same time weighing just 72 g,
the lightest watch in the GRAVITYMASTER lineup.

Carbon monocoque case

Carbon monocoque case

This new shock resistant structure protects modules with a carbon fiber reinforced resin case.

Intricately laminated bezel with 52 layers of carbon sheeting

Intricately laminated bezel with 52 layers of carbon sheeting

Carbon fiber insert band

Carbon fiber insert band

* Constructed with Toray’s TORAYCA® carbon fiber.



CARBON CORE GUARD



Carbon Core Guard structure

This new shock resistant structure protects modules with a carbon fiber reinforced resin case.

Bezel with 52 layers
of carbon sheeting

The bezel is made of carbon materials as well, making it highly durable and resistant to damage. The layered carbon bezel is designed to keep flexibility and to absorb shock. It is achieved by making a clearance between the case and the bezel.

Carbon monocoque case

The case and back cover are part of a unified construction that ensures that the watch is both strong and airtight. In addition, the use of carbon materials grants greater freedom of design while increasing shock resistance.

Shock resistant button

A cleaner design that removes the button guard was achieved through improved case strength and the newly developed structure.

Technology / Design

Rust-resistant

Rust-resistant

Titanium materials are used for the metal parts that are exposed to outside air, making them lightweight, strong, and resistant to rust.

TRIPLE G RESIST

TRIPLE G RESIST

Shock, centrifugal force, and vibration-resistant structure.

* Image shows GPW-2000-1A.

Large front button

Large front button

A large button placed at the 6 o’clock position on the case activates the light and accentuates the rugged design.

Super Illuminator

Super Illuminator (high-brightness LED)

The LED illuminates the dial to ensure visibility in the dark.

In-dial solar panel

In-dial solar panel

Further improvements in the shadow dispersing solar panel by optimizing solar cell shapes to improve power generation efficiency and make it possible to generate sufficient power using only the light received through the dial areas of the face. This eliminates the need to limit the transmittance of the face, which greatly enhances face design possibilities.

Stopwatch with flyback function

Stopwatch with with flyback function

The button at 2 o'clock can be used to start a stopwatch operation while in the stopwatch mode. During a stopwatch operation, a single press of the button at 4 o’clock instantly stops the current operation, resets the stopwatch, and starts a new lap time. This flyback feature avoids time lost to button operations.

Stopwatch with with flyback function

Stopwatch with with flyback function

The button at 2 o'clock can be used to start a stopwatch operation while in the stopwatch mode. During a stopwatch operation, a single press of the button at 4 o’clock instantly stops the current operation, resets the stopwatch, and starts a new lap time. This flyback feature avoids time lost to button operations.

Sapphire crystal with non-reflective coating

Sapphire crystal with non-reflective coating

To ensure high readability, non-reflective coating is applied on the scratch-resistant sapphire crystal.

Application

G-SHOCK Connected

Smartphone App

Main Functions

- Flight Log function
Record time and position in an app by operating the buttons on the watch. View a graphical display of movement history on a map.

- Automatic time adjustment*
- World Time for over 300 cities*
- Phone Finder


* Updating of internal data according to the latest time zone/ daylight saving time information

* App screens shown here may differ from actual screens,
since the app is currently under development.

Supported Phone Models (As of Jan 2019)

iOS: iOS 10 or later
Android: Android 6.0 or later

* Bluetooth installed smartphone only.

* Bluetooth® wordmark and logo are registered trademarks of Bluetooth SIG, Inc. and any use of these marks by Casio Computer Co., Ltd. is under license.
* Apple, Apple logo and iPhone are trademark of Apple Inc. registered in the United States and other countries. App Store is a service mark of Apple Inc.
* IOS is a trademark or registered trademark of Cisco Systems, Inc. registered in the U.S.
* Google Play and the Google Play logo are trademarks of Google LLC.
* All other company and product names are trademarks or registered trademarks of their respective owners.

*The color tone of the listed products may differ from the actual product in some cases.
