FULL METAL
GMW-B5000 SERIES

GMW-B5000GD-9

My GShock

The DW-5000C is the original G-Shock model from 1983. The GMW-B5000 Series has inherited its characteristic square design and been given the full metal treatment along with upgraded features including smartphone linking. The GMW-B5000-1JF has been given a full-metal case by using a shock-resistant fine resin cushioning material inserted between the case and the sturdy stainless steel metal bezel. High-density mounting technology also allows the watch to maintain its size. The back of the watch features a solid Screw Lock Back and has been DLC treated for resistance to wear. Gold ion plating has been applied to the entire case and band for a beautiful color. Visibility too has been enhanced via use of a film solar cell and STN-LCD (liquid crystal). Function-wise, this model comes with Bluetooth® communications and can link with a dedicated app to obtain precise time information. The watch is also packed with practical features including a time correction system that uses standard time and frequency signals (Multi-Band 6), a reliable source of power in the form of Tough Solar technology, high-luminance Full Auto LED backlighting, World Time and day of the week display in six languages. This is a G-Shock model that stays true to its predecessor while undergoing further refinement through the application of a full-metal design.

GMW-B5000GD-9
GMW-B5000GD-9
GMW-B5000GD-9
GMW-B5000GD-9
GMW-B5000GD-9
GMW-B5000GD-9
GMW-B5000GD-9
GMW-B5000GD-9
GMW-B5000GD-9

Specifications

Price
MSRP S$849.00
Case size (L× W× H)
49.3 × 43.2 × 13 mm
Weight
167 g
Case and bezel material
Case / bezel material: Stainless steel
Band
Solid Band
Stainless Steel Band
One-touch 3-fold Clasp
Construction
Shock Resistant
Water resistance
200-meter water resistance
Time adjustment
Radio-controlled Watch; Multi band 6
Power supply and battery life
Tough Solar (Solar powered)

Smartphone Link feature
Mobile link (Wireless linking using Bluetooth®)
Apps
G-SHOCK Connected

Glass
Mineral Glass
Back plate
Screw Lock Back

World time
5 World time 39 time zones (39 cities +coordinated universal time), daylight saving on/off, Home city/World time city swapping, auto summer time (DST) switching
Stopwatch
1/100-second stopwatch Measuring capacity: 00'00''00~59'59''99 (for the first 60 minutes) 1:00'00~23:59'59 (after 60 minutes) Measuring unit: 1/100 second (for the first 60 minutes) 1 second (after 60 minutes) Measuring modes: Elapsed time, split time, 1st-2nd place times
Timer
Countdown timer Measuring unit: 1 second Countdown range: 24 hours Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)
Alarm/hourly time signal
5 daily alarms (with 1 snooze alarm)
Hourly time signal
Light
LED backlight (Super illuminator) Full auto LED light, selectable illumination duration (2 seconds or 4 seconds), afterglow
Light color
LED:White
Calendar
Full auto-calendar (to year 2099)
Mute feature
Button operation tone on/off
Energy saving feature
Power Saving (display goes blank to save power when the watch is left in the dark)
Battery display/alert
Low battery alert
Run time
Approx. battery operating time: 10 months on rechargeable battery (operation period with normal use without exposure to light after charge) 22 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Accuracy
Accuracy: ±15 seconds per month (with no signal calibration and mobile link function)
Other features
12/24-hour format
Date/month display swapping
Day display (days of the week selectable in six languages)
Regular timekeeping: Hour, minute, second, pm, month, date, day
Time adjustment details
Time Calibration Signals Station name: DCF77 (Mainflingen, Germany) Frequency: 77.5 kHz Station name: MSF (Anthorn, England) Frequency: 60.0 kHz Station name: WWVB (Fort Collins, United States) Frequency: 60.0 kHz Station name: JJY (Fukushima, Fukuoka/Saga, Japan) Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga) Station name: BPC (Shangqiu City, Henan Province, China) Frequency: 68.5 kHz
Time calibration signal reception Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal Manual receive The latest signal reception results

A SQUARE CASE WITH A
FULL-METAL SHOCK-RESISTANT STRUCTURE.
ACHIEVED THROUGH SYSTEMATIC EVOLUTION FROM ONE STAGE TO THE NEXT.

The first G-SHOCK model DW-5000C was born in 1983.
Its symbolic square design is reinvented with a full-metal shock-resistant structure and the latest advanced functions, including Smartphone Link.

The only truly tough watch continues to challenge greater heights.

* Silver GMW-B5000D-1, Gold GMW-B5000TFG-9

Features

Toughness in metal.

Newly developed structure

Achieving G-SHOCK's unique shock-resistance capabilities in full metal required a complete redesign of the external structure, including the case, band and buttons.
A new internal structure employing fine-resin cushioning material was developed to offset the more powerful dropping shocks resulting from weight added by using high-strength stainless-steel parts.

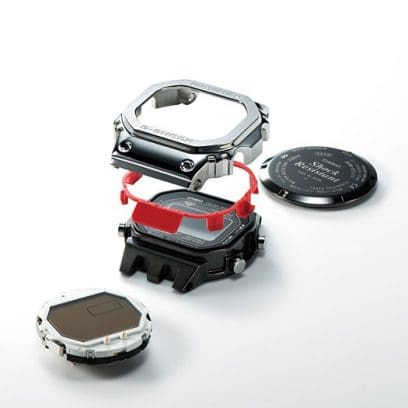

The new shock-resistant structure

Shock resistance achieved with a full-metal case.

The new shock-resistant structure

Fine-resin cushioning parts are inserted between the bezel case and the inner case. Besides achieving a highly accurate fit, this structure responds with reactive force to ease shocks when tiny protrusions in the cushioning material are compressed.

Band connection structure

Fortification of moving parts.

Band connection structure

The double-lug structure conventionally used to connect the band to the case has been redesigned to create a three-pronged lug structure. Shocks to the connecting pipes and button shafts are dispersed, and the band attachment is reinforced.

Button structure

Protecting the button shafts from shocks.

Button structure

The specially developed button structure combines large cylindrical forged buttons with internal pipes that guard the vulnerable button shafts from the inside against lateral shocks.

Screw-lock case back

Increased airtightness specifications.

Screw-lock case back

The airtight, heavy-duty screw-lock case back replicates the first model’s. The slanted surfaces are mirror-finished, and DLC (diamond-like carbon) treatment is applied overall for enhanced wear resistance.

Pursuit of extreme functional beauty.

Our commitment to quality

The use of metal material requires the most advanced processing technologies to reproduce the design of the first G-SHOCK model. We apply leading-edge forging and cutting technologies in our commitment to evoking the beauty of finely inscribed details and to attaining a finish that maximizes the beauty of the metal textures.
The result is a level of quality that sets a new standard for tough watch design.

Bezel case

A fusion of strength and beauty.

Bezel case

After sculpting the form through repeated forging, cutting and polishing, artisans apply mirror polishing and hairline finishing to the surfaces in pursuit of flawless beauty. The case back surface is finely machined to remove any unevenness and assure an accurate fit with the cushioning parts.

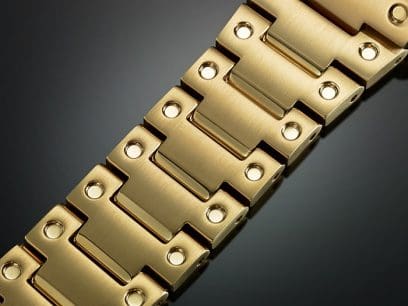

Metal band

Solid feel and superior wearing comfort.

Metal band

The design of the first model’s resin band is reproduced by applying dimple-processing to the stainless-steel band pieces. Each piece is alternately pressed and polished in an unstinting effort to assure beautiful finishing that extends to the bottoms of the dimples.

Inner case

Extending attentive workmanship to unseen parts.

Inner case

After a process involving 10 or more forging and cutting steps, a complex form with integrated lugs and complicated shapes comprising various fitted and cushioning parts takes shape. Precision parts facilitating smooth, accurate assembly are produced.

Original square design

Maintaining G-SHOCK’s origins without change.

Original square design

The design of the first G-SHOCK model has been maintained continuously from the origin. Casio’s efforts in pursuit of universal usability have encompassed the structure with its undivided attention to shock resistance, the large LCD offering excellent visibility and the minimalist form that eschews any interference with wearing ease and comfort.

The airtight, heavy-duty screw-lock case back replicates the first model’s. The slanted surfaces are mirror-finished, and DLC (diamond-like carbon) treatment is applied overall for enhanced wear resistance.

Ongoing internal evolution.

Progression to a new-generation engine

G-SHOCK has introduced one pioneering functional innovation after another. These have included light functions to enhance the visibility of the dial, Tough Solar power supportings table operation of multiple functions, standard time radio wave reception for accurate timekeeping and Bluetooth® communications for versatile multi function control.
The countless challenges we faced in our mission of functional evolution have now been overcome.
The new GMW-B5000 represents the culmination of G-SHOCK's solutions.

LSI layout

The heart of a multifunction watch.

LSI layout

The mounting position of the standard time radio wave antenna is calculated to ensure stable radio reception sensitivity inside a full-metal case. In this and other ways, the highly precise LSI design has solved the problems associated with a metal exterior and multi-functionality.

Dedicated design module

Breakthroughs in functional innovation.

Dedicated design module

We have leveraged our proprietary high-density mounting, miniaturization and power-saving technologies to install multiple functions without increasing the watch’s size. This innovative functional evolution has included such achievements as simultaneous installation of Bluetooth® communications and radio-controlled, solar-powered timekeeping.

Bluetooth + Radio-controlled, solar-powered timekeeping

Challenging absolute accuracy.

Bluetooth® + Radio-controlled, solar-powered timekeeping

Time correction is conducted by either Bluetooth® communications or standard time radio wave (Multi Band 6), depending on the circumstances. Reception of the most recent time zone and Daylight Saving Time information assures that the correct time is displayed at all times.

Full-auto LED backlight (Super Illuminator)

Evolving dial-lighting technologies.

Full-auto LED backlight (Super Illuminator)

An LED backlight illuminates the LCD with high-brightness light. It detects ambient light in the surroundings automatically, and switches on with a tilt of the wrist in the dark. New features such as fade in/out and white/orange lighting add further versatility.

STN LCD

Advanced digital display.

STN LCD

An STN LCD has replaced the conventional TN LCD to take advantage of its higher contrast and wider viewing angle. The face, including the logo and function display, is completed in a design mirroring the layout of the first model.

Film solar panel

Enhanced visibility.

Film solar panel

The material employed for the solar panel has been changed from glass to an easily processed film. An aperture is opened in the center of the panel to suppress reflections of external light and improve the LCD’s visibility.

Display aspect

Legacy of the universal ratio.

Display aspect

The LCD’s approximately 16:10 aspect ratio approaches the angle of human vision. Adopted in pursuit of clear visibility, this ratio has been handed down from one model to another since the origin to benefit from its closeness to the Golden Ratio, which is considered to represent the most beautiful proportions in nature.

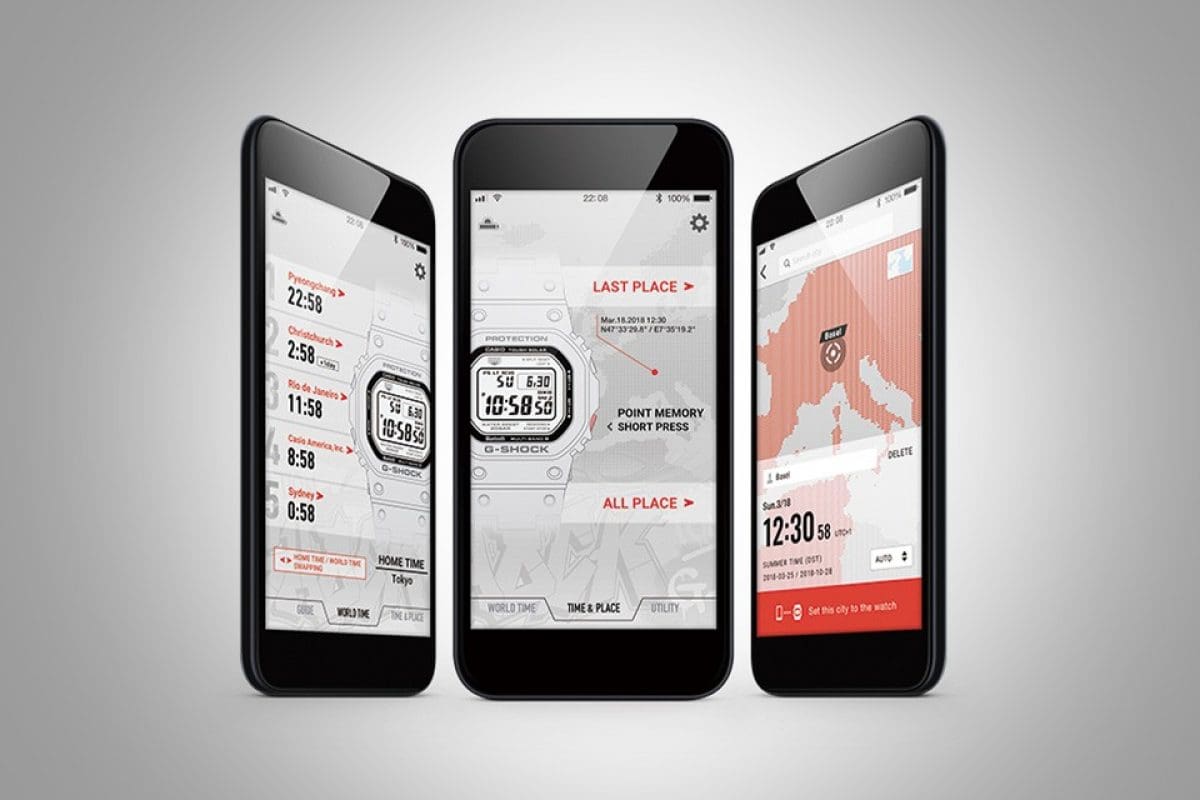

G-SHOCK Connected

G-SHOCK Connected FREE

Smartphone App

- Automatic time adjustment (4 times/day)

- Time & place
Stamping of current time/location on a map in the app with watch button operation.

- Easy watch setting
Home Time/World Time display switching • Timer/daily alarm setting• TLocal calendar setting (day of week in English, Spanish, German, French, Italian, Russian; month/date display switching)

- Easy watch setting

- World Time city setting
Over 300 cities preset as original points.

- Reminder
Notification by the watch of scheduled dates. Blinking and title display + luminescent color changes when illuminated.

- Phone Finder

* App screens shown here may differ from actual screens,
since the app is currently under development.

Supported Phone Models (As of Apr 2018)

・iOS: iOS 10 or later
・Android: Android 6.0 or later

* Bluetooth installed smartphone only.

* The Bluetooth® wordmark and logo are registered trademarks of Bluetooth SIG, Inc. and any use of these marks by Casio Computer Co., Ltd. is under license.
* Apple, Apple logo and iPhone are trademark of Apple Inc. registered in the United States and other countries. App Store is a service mark of Apple Inc.
* IOS is a trademark or registered trademark of Cisco Systems, Inc. registered in the U.S.
* Google Play and the Google Play logo are trademarks of Google LLC.
* All other company and product names are trademarks or registered trademarks of their respective owners.

*The color tone of the listed products may differ from the actual product in some cases.
